cULus Listed

• Control of 1 or 2 pumps based on signals from sensor input (analog, 0 to 5 V, 0.5 to 3.5 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA or digital or float switch) Support up to five control levels for both analog level transmitter or float switch operation (2 pump control models) Supports simple application where only one float switch is present - single float switch operation Configurable input or output terminals that can be used as digital input or output, analogue input and Pt 100/1000 inputs for flexible use in the actual application Prevent the pumps with anti-seizing from choking or seizing due to limestone build up or other deposits Prevent the mains load when several pumping stations are started up at the same time with power on delay Protection against water hammer as quick restart or simultaneous start is blocked and delayed Selection of automatic alarm resetting Setting of stop delays matching the actual operating conditions Shows the actual liquid level Alarm indication via built-in buzzer

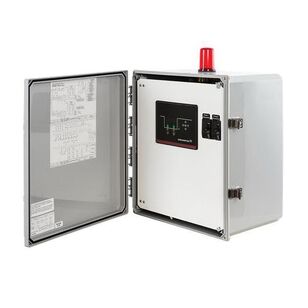

LC 241 level controllers offer a comprehensive range of features for waste water pumping systems, monitoring and control of one or two pumps, up to 72 A. The LC 241 is a metal or plastic cabinet solution offering modularity and customization according to your needs.
