AHRI Certified|ASHRAE 90.1-2019|cULus Listed

• Factory charged with R-410A HFC refrigerant Wired and run tested Scroll compressors with internal line break overload and high pressure protection Convertible airflow - vertical downflow or horizontal side flow Forkable base rails for easy handling and lifting Two-stage gas heat input with direct spark ignition system, solid state furnace controls and optimized induced draft combustion MicroChannel evaporator and condenser coil Overflow condensate sensor PlusOne® diagnostics with dual seven-segment LED display to meet code compliance One-piece top cover and base pan with drawn supply and return opening Two-piece control door Quarter turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid core liquid line filter drier High pressure and low pressure/loss of charge protection with built-in smart logic Insulation encapsulated throughout entire unit New product footprint with matching connections Standard modbus interface

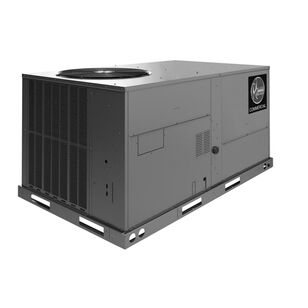

Engineered with install ability and serviceability in mind, Renaissance™ makes easier, drop-in replacement possible in most cases without a curb adapter. Once installed, building owners and contractors will enjoy the serviceability advantages Renaissance™ offers with out ServiceSmart package that includes a qwik-clean drain pan, the qwik-slide blower assembly and PlusOne® diagnostics with dual seven-segment LED display. RGECZR/ZT models in 3 to 5 tons offer up to 16.2 SEER2/17 SEER and 12 EER2/12.5 EER. RGECZT models in 6 tons offer up to 14.6 IEER and 11.2 EER. With two-stage cooling (RGECZT models only), the patent-pending Velocifin™ heat exchanger and optional HumidiDry®, these Renaissance™ models include many innovative features that enhance overall and part load performance to meet or exceed DOE 2023 requirements.
