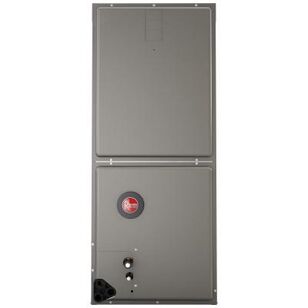

Rheem® ES4BD-KB Series RH1T4824STANDA Air Handler, 48000 Btu/hr, 1400 to 1800 cfm, 480 V, 3.2 A, 3/4 hp, 60 Hz
Rheem® ES4BD-KB Series RH1T4824STANDA Air Handler, 48000 Btu/hr, 1400 to 1800 cfm, 480 V, 3.2 A, 3/4 hp, 60 Hz
Rheem® Air Handler, RH1T Series, 48000 Btu/hr Nominal Capacity, 480 V Voltage Rating, 3.2 A Amperage Rating, 3/4 hp Rating, 60 Hz Frequency Rating, 3 ph Phase, 300 to 1100 rpm Rotational Speed, 1400 to 1800 cfm Rating, Convertible Configuration, 14 SEER Rating, Connection Type: NPT, R-410A Refrigerant Type, 15 A Fuse Rating, 7/8 in Connection, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 25 x 20 in Filter Size, 1 Number of Stages, 5 Number of Speeds, ECM Motor Type, Steel, 50-1/2 in H x 24-1/2 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,181.16 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating3.2
CFM Rating1400 to 1800
ConfigurationConvertible
Connection Size7/8
Connection TypeNPT
Dimensions50-1/2 " H x 24-1/2 " W x 21-11/16 " D
Filter Size25 x 20
Frequency Rating60
Fuse Rating15
HP Rating3/4
Liquid Line Size3/8
MaterialSteel
Motor TypeECM
Nominal Capacity48000
Number of Speeds5
Number of Stages1
Phase3
Refrigerant TypeR-410A
Rotational Speed300 to 1100
SEER Rating14
SeriesRH1T Series
Suction Line Size7/8
Voltage Rating480
Additional Information
AHRI Certified|cULus Listed
Features & Benefits
- RH1T feature a Constant Torque motor (ECM) which provides enhanced SEER performance with most Rheem outdoor units Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications Factory-installed indoor coil. Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect 1-1/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 551/2 inches [1080 to 1410 mm] tall and 22 inches [559 mm] deep All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure Enhanced airflow up to 0.7 in external static pressure Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
Rheem® ES4BD-KB Series RH1T4824STANDA Air Handler, 48000 Btu/hr, 1400 to 1800 cfm, 480 V, 3.2 A, 3/4 hp, 60 Hz
BrandRheem®
MFG #RH1T4824STANDA
Keller #1303620
