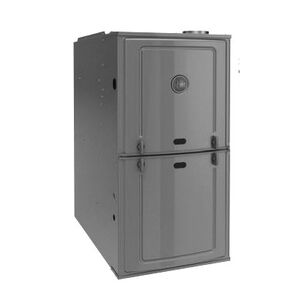

Rheem® Eclipse Series R801TA070417MUA Gas Furnace, 4 ton, 70000 Btu/hr Input BTU, 115 V, 1602 cfm, 3/4 hp, 80 % AFUE
Rheem® Eclipse Series R801TA070417MUA Gas Furnace, 4 ton, 70000 Btu/hr Input BTU, 115 V, 1602 cfm, 3/4 hp, 80 % AFUE
Rheem® Gas Furnace, Classic® Series, 70000 Btu/hr Input BTU Rating, 115 V Voltage Rating, 12 A Amperage Rating, 1602 cfm Rating, 3/4 hp HP Rating, 80 % AFUE Rating, 1 ph Phase, 60 Hz Frequency Rating, 1 Number of Stages, Multi-Poise Configuration, Connection Type: NPT, 1/2 in Connection, Electric Fuel Type, 5 Number of Speeds, 7 in W x 11 in D Blower Size, 34 in H x 17 in W x 28-1/32 in D Cabinet Dimensions, Constant Torque Motor Type, Vent Vent, Ducted or Ductless, 6 in Vent Size, 15 A Fuse Rating, 4 ton Tonnage, PlusOne® Ignition System, Direct Spark Ignition Type, 0.9 kPa, Steel, Aluminized, 35 to 65 deg F Temperature Rise, Ultra Low Nox Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,190.78 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationUltra Low Nox
AFUE Rating80
Amperage Rating12
Blower Size7 " W x 11 " D
Cabinet Dimensions34 " H x 17 " W x 28-1/32 " D
CFM Rating1602
ConfigurationMulti-Poise
Connection Size1/2
Connection TypeNPT
FinishAluminized
Frequency Rating60
Fuel TypeElectric
Fuse Rating15
HP Rating3/4
Ignition SystemPlusOne
Ignition TypeDirect Spark
Input BTU Rating70000
MaterialSteel
Motor TypeConstant Torque
Number of Speeds5
Number of Stages1
Phase1
Pressure Rating0.9
SeriesClassic Series
Temperature Rise35 to 65
Tonnage4
Vent Size6
Voltage Rating115
Warranty20 Year Limited Heat Exchanger, 10 Year Limited Parts
Additional Information
AHRI Certified|CSA Certified
Features & Benefits
- 80% residential gas furnace CSA certified Three-way multi-poise design UF/HZ PlusOne® diagnostics - seven-segment LED all units PlusOne® ignition system - DSI for reliability and longevity Heat exchanger is removable for improved serviceability Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability Solid doors provide quiet operation Solid bottom Insulated blower compartment Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Hemmed edges on cabinet and doors 1/4 turn door knobs for tool less access Integrated control board features dip switches for easy system setup QR code for quick access to product information from your smart phone or tablet Constant torque electrically commutated motor
Marketing Information
Our gas furnace line was already recognized as best in its class 4, but that didn't stop us from making it better. We designed an environmentally friendly and responsible product to provide cleaner air for your community and dependable, quiet comfort for your home.
Rheem® Eclipse Series R801TA070417MUA Gas Furnace, 4 ton, 70000 Btu/hr Input BTU, 115 V, 1602 cfm, 3/4 hp, 80 % AFUE
BrandRheem®
MFG #R801TA070417MUA
Keller #1305092
