Oatey® Quadtro® 38541 Washing Machine Outlet Box With Hammer Arrester Valve, 3/4 in, CPVC, Polystyrene, White
Oatey® Quadtro® 38541 Washing Machine Outlet Box With Hammer Arrester Valve, 3/4 in, CPVC, Polystyrene, White
Oatey® Quadtro® Washing Machine Outlet Box With Hammer Arrester Valve, Quadtro Collection, 3/4 in, CPVC Connection, Polystyrene, White, 9.61 in H x 9.43 in W x 3.73 in D, Additional Information: 10.19 in H x 11.73 in W Faceplate, 7.26 in H x 8.75 in W Box Opening
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$120.44 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandOatey®
Additional Information10.19 " H x 11.73 " W Faceplate, 7.26 " H x 8.75 " W Box Opening
ApplicationFor commercial and residential applications
CollectionQuadtro
Collection NameQuadtro
ColorWhite
Connection TypeCPVC
Dimensions9.61 " H x 9.43 " W x 3.73 " D
Height3.7

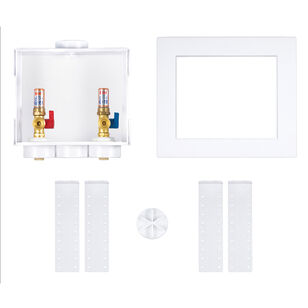

IncludesQuarter-Turn Brass Ball Valve, (4) Side Bracket, (1) Faceplate, (1) Test Plug
IndustryPlumbing
Length11.3
MaterialPolystyrene
Size3/4
Weight2.7
Width10
Additional Information
ANSI Specified|ASME A112.18.1|ASSE 1010|CSA B125.1|IAPMO Certified|NSF 61/372
Features & Benefits
- 2 in drain opening fits PVC or ABS SCH 40 DWV pipe Easy-to-remove, tool-free quarter turn knockout Snap-on faceplate frame accommodates up to 1 in drywall Box made of high impact polystyrene stands up to the roughest job site abuse Four support brackets included for easy top or bottom valve-mounting Two proprietary lock and load quarter turn valves enable left, right or center positioning of the drain pipe Connects to CPVC supply line with solvent-weld connection
Marketing Information
The Oatey® Quadtro® washing machine outlet box is made for commercial or residential applications where supply valves and waste drains are recessed into the wall. The proprietary lock and load valves enable left, right or center positioning of the drain pipe. This easy-to-install box includes all necessary support brackets to mount the water supply valves from the top or bottom.
Oatey® Quadtro® 38541 Washing Machine Outlet Box With Hammer Arrester Valve, 3/4 in, CPVC, Polystyrene, White
BrandOatey®
MFG #38541
Keller #13064
My Part ##
Last Ordered#
$120.44 / ea
