ASME A112.18.1|ASSE 1010|ASTM F876, F877|CSA B137.5, B125.1|NSF/ANSI 14, NSF/ANSI/CAN 61, 372

• Fully assembled out of the bag Tailpieces have near 360 deg movement for installation in any orientation Copper and PEX tailpieces to extend beyond body for easy use of inlet pipe connection tools Chrome lock nut to match valve and allows for "Z" axis movement to handle multiple drywall layer options and or cabinet wall installations Standard drywall configurations handled out of the box (1/2 in, 5/8 in, 1/2 in and 5/8 in, 2 x 1/2 in, 2 x 5/8 in) Small footprint 2-1/2 in sheetrock hole (3 in hole size covered by goof ring plate) Attaches to SB1/2/3/4 brackets, 170/170-26, hyco bars or directly to studs Two-support leg sockets and one 5/8 in friction socket (accepts lengths of copper, PEX or CPVC) for additional support where needed Protective cover is threaded so no additional tools or screws are necessary for install or removal

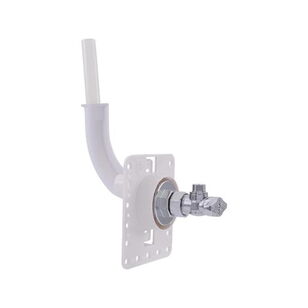

HoldRite® fixture outlet boxes are designed for use in commercial and residential applications and allow for installation of water supply valves during the rough-in phase. They can be installed directly to a stud via flange holes or between studs using a hyco bar, HoldRite® 170 or other HoldRite® galvanized bracketing. Outlet box assemblies include a supply valve with a 1/4-turn handle and a 1/4 in or 3/8 in threaded compression connection. Can be used with copper, PEX or CPVC. Protective debris cover included. Escutcheons, valve extension and other accessories sold separately.
