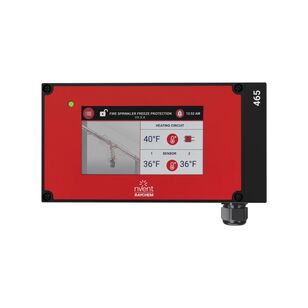

Raychem® 465 Electronic Controller, 120-277 V, Electro-Mechanical Relay Type, 32 to 176 deg F Temperature Control
Raychem® 465 Electronic Controller, 120-277 V, Electro-Mechanical Relay Type, 32 to 176 deg F Temperature Control
Raychem® Electronic Controller, 120-277 V, 24 A, 50/60 Hz, 2 Poles, Electro-Mechanical Control Relay, 32 to 176 deg F Temperature Control, 20 AWG Wire, Thermistor Sensor, 32 to 105 deg F Operating Temperature, NEMA 12 Enclosure, DIN Rail Mounting, Polycarbonate Housing, 3.5 in H x 8.26 in W x 3.34 in D, For Use With: Fire Protection Pipe Tracing Systems
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRaychem®
Amperage Rating24
Control Relay TypeElectro-Mechanical
Dimensions3.5 " H x 8.26 " W x 3.34 " D
Enclosure TypeNEMA 12
Frequency Rating50/60
Housing MaterialPolycarbonate
IndustryPlumbing
Mounting TypeDIN Rail
Number of Poles2
Operating Temperature32 to 105
Sensor TypeThermistor
Suitable For Use WithFire Protection Pipe Tracing Systems
Temperature Control Range32 to 176
Voltage Rating120-277
Wire Size20
Additional Information
cULus Listed|UL 1053|UL 515A
Features & Benefits
- Simple and fast to install and operate with colored touchscreen for easy navigation Advanced features such as High Temperature cut-out which eliminates the need for 2nd thermostat on sprigs and reduces installation costs Built-in ground fault protection functionality evaluated per UL1053 standard. Easiliy adjustable ground fault alarm and trip settings Flexible and intuitive set-up reduces set-up time USB port for firmware updates, download monitoring reports and remote battery powered setup Built-in Form C Alarm relay with flexible set up for Normally Open/Normally Closed operation Energy efficient proportional ambient sensing control mode (PASC)
Marketing Information
nVent Raychem 465 controller is a c-UL-us listed controller designed to freeze protect the fire sprinkler and fire protection piping per UL515A. This controller, as a part of the c-UL-us listed Raychem electric heat tracing system, provides an energy efficient, low installation cost and faster response solution than alternate methods such as dry systems or glycol systems.
Raychem® 465 Electronic Controller, 120-277 V, Electro-Mechanical Relay Type, 32 to 176 deg F Temperature Control
BrandRaychem®
MFG #465
Keller #1307406
My Part ##
Last Ordered#
Call for Price / ea
