WHITE-RODGERS™

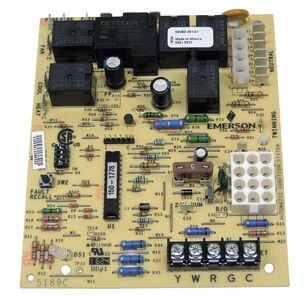

WHITE-RODGERS™ 50M56U-801 Furnace Control Board, 25 VAC
WHITE-RODGERS™
WHITE-RODGERS™ 50M56U-801 Furnace Control Board, 25 VAC
MFG #50M56U-801
Item #1308902
Mfr. Part #50M56U-801
UPC #786710553417
WHITE-RODGERS™ Furnace Control Board, 25 VAC
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$303.20 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
IndustryHVAC
Voltage Rating25
Features & Benefits
- System diagnostic LED with fault recall Fused to protect low voltage system transformers Three fan speeds Adapter harness for application flexibility 15 sec pre-purge time 30/45 heat delay for to fan on, 60/90/120/180 heat delay for to fan off, 2 cool delay for to fan on, 2/60 cool delay for to fan off, default setting 5 sec post-purge 0.8 sec max flame failure response time 2 sec flame failure response time 1.5 A at 25 VAC 50/60 Hz for valve relay, 1.2 A at 120 VAC 50/60 Hz for igniter relay Surface-mount standoffs 5 - 93% RH, non-condensing humidity
