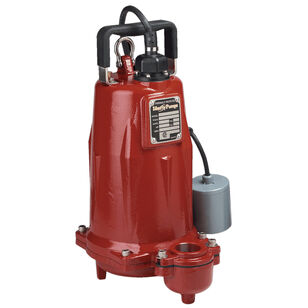

Liberty Pumps® FL100 Series FL102A-3 Effluent Pump, 208-230 V, 12 A, 60 Hz, 1 hp, 107 gpm, Iron
Liberty Pumps® FL100 Series FL102A-3 Effluent Pump, 208-230 V, 12 A, 60 Hz, 1 hp, 107 gpm, Iron
Liberty Pumps® Effluent Pump, FL100 Series, 208-230 V, 12 A, 60 Hz Frequency, HP Rating: 1 hp, 3450 rpm Speed, 107 gpm Flow Rate, 1 ph, 1-1/2 in, 2 in Discharge, 35 ft Cord Length, Maximum Feet of Head: 140 ft, Insulation Class: Class B, Flange Mounting, 140 deg F, Cast Iron Impeller, Dimensions: 11-3/4 in L x 11-3/4 in W x 18 in H, Iron, Powder-Coated, Additional Information: Automatic Operation
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,686.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLiberty Pumps®
Additional InformationAutomatic Operation
Amperage Rating12
Color/FinishPowder-Coated
Cord Length35
Dimensions11-3/4 " L x 11-3/4 " W x 18 " H
Discharge Size1-1/2 ", 2 "
FinishPowder-Coated
Flow Rate107
Frequency Rating60
HP Rating1
Impeller MaterialCast Iron
IndustryPlumbing
Insulation ClassClass B
MaterialIron
Maximum Feet of Head140
Mounting TypeFlange
Phase1
SeriesFL100 Series
Speed Rating3450
Temperature Rating140
Voltage Rating208-230
Warranty3 Year Limited
Shipping Dimensions (L x W x H)14.25" x 9.75" x 22"
Additional Information
cCSAus Certified|SSPMA Certified
Features & Benefits
- Heavy cast iron construction Semi-open cast iron impeller Stainless steel rotor shaft Dual-shaft seals Single-float, mercury-free level control Fully adjustable pumping range 2 in FNPT threaded discharge with 1-1/2 in FNPT flange provided Quick-connect power cord 25 ft length standard
Marketing Information
The FL100 series by Liberty Pumps® covers a wide range of high head pump applications. Designed with Liberty Pumps® unique one-piece cast iron body and quick-connect cords in 25 ft standard length. The FL100 series by Liberty Pumps® is a 1 hp effluent pump designed for step systems, mound systems, liquid waste transfer and higher head de-watering applications. The pump features a dual sized threaded discharge of 1-1/2 in and 2 in for connection to either size pipe. Built of heavy cast iron with an epoxy powder-coated finish and stainless steel fasteners, the FL100 series will provide years of reliable performance.
Liberty Pumps® FL100 Series FL102A-3 Effluent Pump, 208-230 V, 12 A, 60 Hz, 1 hp, 107 gpm, Iron
BrandLiberty Pumps®
MFG #FL102A-3
