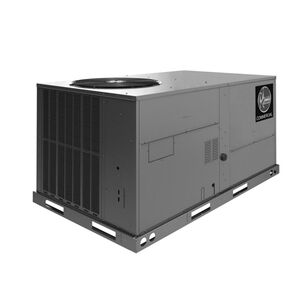

Rheem® Commercial Classic® Series RACCZR060AJT000ACAA0 Packaged Air Conditioner, 5 ton Nominal, 59500 Btu/hr Cooling BTU
Rheem® Commercial Classic® Series RACCZR060AJT000ACAA0 Packaged Air Conditioner, 5 ton Nominal, 59500 Btu/hr Cooling BTU
Rheem® Packaged Air Conditioner, Series: Commercial Classic® Series, 5 ton Nominal Capacity, 59500 Btu/hr Cooling BTU Rating, 208/230 V, 42 A, 1 hp Rating, 1050 rpm Rotational Speed, 60 Hz, 1 ph, Scroll Compressor, 2000 cfm Rating, 11.2 EER, 14 SEER, 1 Speed, 1 Stage, R-410A, Direct Drive, 16 in L x 16 in W x 2 in THK Filter, 18 ga Sheet Metal, 46-3/4 in H x 79-1/4 in W x 46-3/4 in D, Additional Information: Small Commercial Cabinet, Third Generation
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$18,138.09 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationSmall Commercial Cabinet, Third Generation
Amperage Rating42
CFM Rating2000
Compressor TypeScroll
Cooling BTU Rating59500
Dimensions46-3/4 " H x 79-1/4 " W x 46-3/4 " D
Drive TypeDirect
EER Rating11.2
Filter Size16 " L x 16 " W x 2 " THK
Frequency Rating60
HP Rating1
Material18 ga Sheet Metal
Nominal Capacity5
Number of Speeds1
Number of Stages1
Phase1
Refrigerant TypeR-410A
Rotational Speed1050
SEER Rating14
SeriesCommercial Classic Series
Voltage Rating208/230
Additional Information
AHRI Certified|ASHRAE 90.1 2019|cUL Listed
Features & Benefits
- Factory charged with R410A HFC refrigerant Wired and run tested Scroll compressors with internal line break overload and high pressure protection Convertible airflow - vertical down flow or horizontal side flow Forkable base rails for easy handling and lifting Cooling operation up to 125 deg F ambient Micro channel evaporator and condenser coil Overflow condensate sensor PlusOne® Diagnostics with dual seven segment LED display to meet code compliance One-piece top cover and base pan with drawn supply and return opening Two-piece control door Quarter turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid core liquid line filter drier High pressure and low pressure/loss of charge protection with built-in Smart Logic Insulation encapsulated throughout entire unit
