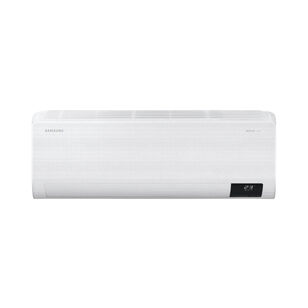

Samsung WindFree™ 3.0 RXS15CMC AR15CSFCMWKXCV Evaporator Split System Air Conditioner, 208-230 V, 16 A, 1 ph Phase
Samsung WindFree™ 3.0 RXS15CMC AR15CSFCMWKXCV Evaporator Split System Air Conditioner, 208-230 V, 16 A, 1 ph Phase
Samsung WindFree™ 3.0 Evaporator Split System Air Conditioner, Model: RXS15CMC, 208-230 V, 16 A, 60 Hz, 1 ph Phase, 3 Fan Speeds, 15000 Btu/hr Heating, 5500 to 20000 Btu/hr Cooling, 586 cfm Heating CFM Rating, 586 cfm Cooling CFM Rating, 12 EER Rating, 19.3 SEER, 8.3 HSPF, Flared Connection, 25 A Fuse Rating, 51 dBA Heating Sound Level, 41 dBA Cooling Sound Level, Wall Mounting, Steel, Finish: Galvanized/Powder-Coated, -5 to 75 deg F, 50 to 86 deg F Heating Operating Temperature, 14 to 115 deg F, 61 to 90 deg F Cooling Operating Temperature, 34-5/8 in Overall Length, 12-3/16 in Overall Width, 25-1/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,372.68 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating16
Connection TypeFlared
Cooling BTU Rating5500 to 20000
Cooling CFM Rating586
Cooling Operating Temperature14 to 115 deg F, 61 to 90 deg F
Cooling Sound Level41
EER Rating12
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating25
Heating BTU Rating15000
Heating CFM Rating586
Heating Operating Temperature-5 to 75 deg F, 50 to 86 deg F
Heating Sound Level51
HSPF Rating8.3
IndustryHVAC
MaterialSteel
ModelRXS15CMC
Mounting TypeWall
Number of Fan Speeds3
Overall Height25-1/8
Overall Length34-5/8
Overall Width12-3/16
Phase1
SEER Rating19.3
Voltage Rating208-230
Additional Information
AHRI 210/240-2023|cETLus Listed|ENERGY STAR Certified|UL 60335-2-40
Features & Benefits
- In cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants The indoor unit shall have Wi-Fi capability as standard Outdoor unit shall provide 208/230 V power to indoor unit via 14 AWG x 3 interconnect power cable The outdoor unit shall be galvanized steel with a baked-on powder-coated finish for durability The heat exchanger shall be mechanically bonded fin to copper tube The compressor shall be hermetically sealed, inverter controlled BLDC rotary type Refrigerant flow shall be controlled by an electronic expansion valve at outdoor unit The indoor fan shall be a single, anti-bacterial cross-flow type Three-fan speed settings and auto setting Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app (Android, iOS) Dual-set temperature support when connected to MWR-WG00UN advanced wired controller Wired controller options available Samsung central control compatible (MIM-R10UN accessory required) Interconnect control wire between outdoor and indoor unit shall be two 16 AWG System energy consumption can be viewed using the Samsung SmartThings mobile app or on the indoor unit display using the included wireless controller AI (artificial intelligence) auto-mode technology monitors factors such as indoor temperature, outdoor temperature, set temperature and operating time to learn the patterns within your home to automatically adjust system operation to maximize occupant comfort and efficiency (Wi-Fi connection required) Eco mode to reduce energy consumption during low demand operation Smart install mode - start-up system diagnostics operation to ensure system readiness during initial operation Auto-restart
Marketing Information
Samsung's exclusive WindFree™ cooling technology provides users with a cool indoor climate without the discomfort of direct cold airflow. It's an advantage no other system can match.
Samsung WindFree™ 3.0 RXS15CMC AR15CSFCMWKXCV Evaporator Split System Air Conditioner, 208-230 V, 16 A, 1 ph Phase
BrandSamsung
MFG #AR15CSFCMWKXCV
