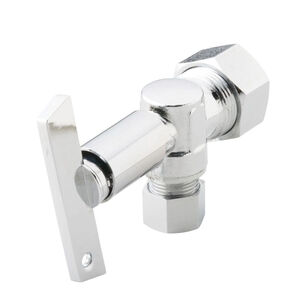

Oatey® 4790PCLKBG Quarter-Turn Loose Key Angle Water Stop Valve, 5/8 x 3/8 in Nominal, Compression, Loose Key Actuator
Oatey® 4790PCLKBG Quarter-Turn Loose Key Angle Water Stop Valve, 5/8 x 3/8 in Nominal, Compression, Loose Key Actuator
Oatey® Quarter-Turn Loose Key Angle Water Stop Valve, 5/8 x 3/8 in Nominal, Connection Type: Compression, 125 psi, Number of Ports/Ways: 2-Port, Brass/PTFE Trim, NBR Softgoods, Brass Body, ABS Handle, Loose Key Actuator, Chrome-Plated, 40 to 160 deg F, 3 in H x 2.3 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$17.34 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandOatey®
Actuator TypeLoose Key
Body MaterialBrass
Color/FinishChrome-Plated
Connection TypeCompression
Dimensions3 " H x 2.3 " W
FinishChrome-Plated
Handle MaterialABS
IndustryPlumbing
Nominal Size5/8 x 3/8
Number of Ports/Ways2-Port
Pressure Rating125
Softgoods MaterialNBR
Temperature Rating40 to 160
Trim MaterialBrass/PTFE
Additional Information
ASME A112.18.1-2018|CSA B125.1-18|NSF/ANSI/CAN 61: Q|NSF/ANSI/CAN 372-2022|UPC Certified
Features & Benefits
- 1/4-turn loose key angle water stop valve For horizontal connections where water lines passes through wall Connects to copper supply line with compression connection Quarter turn ball valve allows for use in tight spaces Brass forged body and solid brass stem ensure strength and durability PTFE seats allow for easy valve operation Every valve is pressure leak tested Full-size, easy-to-use handle Inlet: 5/8 in. O.D. (1/2 in. NOM COMP); Outlet: 3/8 in. O.D. Tamperproof loose key prevents water supply from being turned on/off in commercial settings Commonly used for faucets, kitchen sinks and toilets Certified to meet NSF/ANSI/CAN 61: Q <(or equal) 0.5 lead requirements
Oatey® 4790PCLKBG Quarter-Turn Loose Key Angle Water Stop Valve, 5/8 x 3/8 in Nominal, Compression, Loose Key Actuator
BrandOatey®
MFG #4790LKBG
Keller #1312610
My Part ##
Last Ordered#
$17.34 / ea
