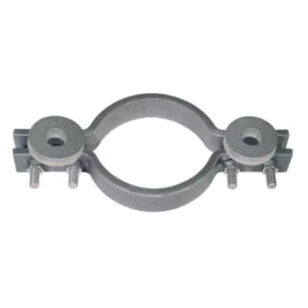

ANVIL® Fig 595 Series 500251335 Socket Clamp, 8 in, Steel, 2-1/2 in W
ANVIL® Fig 595 Series 500251335 Socket Clamp, 8 in, Steel, 2-1/2 in W
ANVIL® Socket Clamp, Fig 595 Series, Fits Pipe Size: 8 in, 5/8 in Bolt, Steel Body, Finish: Plain, 19-1/8 in Length, 2-1/2 in Width, 250 psi, Bolt Locking Style, 16080 lb Load, For Use With: Ductile Iron, Cast Iron Pipes, Additional Information: 3/4 in Dia Washer
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,421.07 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandANVIL®
Additional Information3/4 " Dia Washer
Body MaterialSteel
Bolt Size5/8
FinishPlain
Fits Pipe Size8
Includes(4) Zinc Plated Bolts and Nuts
Length19-1/8
Load Capacity16080
Locking StyleBolt
Pressure Rating250
SeriesFig 595 Series
Suitable For Use WithDuctile Iron, Cast Iron Pipes
Width2-1/2
Additional Information
ANSI/MSS SP-69/MSS SP-58 Type 8|Federal Specification A-A-1192A Type 8|NFPA 24
Features & Benefits
- Clamps ductile or cast iron mechanical joint piping or mechanical joint or socket joint fittings together to prevent separation or distortion of pipe line under excessive water pressure Fig. 595 socket clamp washer must be ordered separately
Documents
ANVIL® Fig 595 Series 500251335 Socket Clamp, 8 in, Steel, 2-1/2 in W
BrandANVIL®
MFG #0500251335
Keller #1313302
My Part ##
Last Ordered#
$1,421.07 / ea
