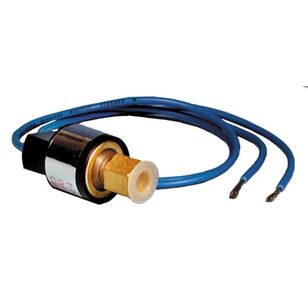

Pressure Switch
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$38.35 / ea
Out of Stock
- Attributes
- Features & Benefits
Attributes
BrandSupco®
IndustryHVAC
Prop 65 WarningYes
Shipping Dimensions (L x W x H)5.25" x 3.25" x 1.5"
Features & Benefits
- Low pressure switch opens on pressure fall
- Rated Voltage 24/120/240 VAC @ 50/60 Hz
- Life at rated load: 100,000 cycles
- No.188'' SAE 45No.176 female flare fitting with valve core depressor
- Snap acting stainless steel hermetically sealed sensor (SHP, SLP, and SFC)
- Small size and liGHT weiGHT for direct mounting
- Wire is 18 AWG, 18'' long
- Maximum FLA 5.8 Amps @ 120VAC
- Maximum FLA 2.9 Amps @ 240VAC
- Maximum LRA 34.8 Amps @ 120VAC
- Maximum LRA 17.4 Amps @ 240VAC
- Maximum Temperature -31No.176F to 149No.176F (-35No.176C to 65No.176C)
- Maximum Operating Pressure 700 PSI
- Burst Pressure 2800 PSI
- Close PSI 20 PSI
- Open PSI 5 PSI
- Tolerance Plus/- 5 PSI
Pressure Switch
BrandSupco®
MFG #SLP0520
Keller #1315849
