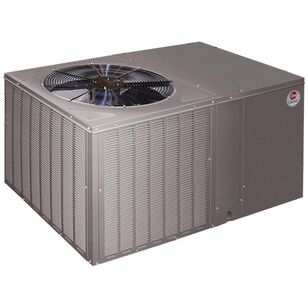

Rheem® RSPM-A, Classic A036JK RSPM-A036JK000 Air Conditioner, 2 to 5 ton Nominal, 36000 Btu/hr Cooling BTU, 27 A
Rheem® RSPM-A, Classic A036JK RSPM-A036JK000 Air Conditioner, 2 to 5 ton Nominal, 36000 Btu/hr Cooling BTU, 27 A
Rheem® Air Conditioner, Series: RSPM-A, Classic, Model: A036JK, 2 to 5 ton Nominal Capacity, 36000 Btu/hr Cooling BTU Rating, 208 to 230 VAC, 27 A, 2.97 kW, 1/3 hp Condenser, 1/2 hp Blower Motor HP Rating, 875 to 1050 rpm Rotational Speed, 60 Hz, 1 ph, (1) Scroll Compressor, 1200 cfm Rating, 12.2 EER, 14 SEER, 1 Stage, R-410A, HFC, 76 dBA, Direct Drive, Outdoor Coil - 12.65 sq-ft Face Area, 22 Fins/in, Indoor Coil - 4.33 sq-ft Face Area, 15 Fins/in Coil Rating, Steel, Powder-Painted, 59 in W x 29-1/8 in H x 33 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,079.45 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating27
CFM Rating1200
Coil RatingOutdoor Coil - 12.65 sq-' Face Area, 22 Fins/", Indoor Coil - 4.33 sq-' Face Area, 15 Fins/"
Color/FinishPowder-Painted
Compressor Type(1) Scroll
Cooling BTU Rating36000
Dimensions59 " W x 29-1/8 " H x 33 " D
Drive TypeDirect
EER Rating12.2
FinishPowder-Painted
Frequency Rating60
HP Rating1/3 hp Condenser, 1/2 hp Blower Motor
IndustryHVAC
MaterialSteel
ModelA036JK
Nominal Capacity2 to 5
Number of Stages1
Phase1
Refrigerant TypeR-410A, HFC
Rotational Speed875 to 1050
SEER Rating14
SeriesRSPM-A, Classic
Sound Level76
Voltage Rating208 to 230
Wattage2.97
Additional Information
AHRI Certified, ISO 9001:2008 Certified, C/US UL Listed, Energy Star Certified
Features & Benefits
- Efficiency designation Design Series Future technical variations The scroll compressor have fewer moving parts, they are quieter, more efficient, longer lasting and quiet operation Louvered condenser compartment is the best in the industry for protecting the condenser coil against yard hazards and weather extremes One-piece top with a drip lip to help keep water off of the unit sides Supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork Access panels have "weep holes" and channels to further help manage water run-off Easily accessible blower section complete with slide-out blower Refrigerant connections are conveniently located for easy service diagnostics Grille/fan motor mount helps protect the fan motor from the elements for longer life and its design dependability helps reduce vibration and noise Easily accessible control box controls are up-front for quick installation and easy service diagnostics Matched blower/evaporator coil unit is responsible for the flow of air into your duct work, it has been designed to match the MultiFlex evaporator coil and other system components for maximum efficiency and quiet operation The coil features rifled copper tubing and enhanced fins for improved efficiency Exterior service fittings enable a serviceman to quickly determine unit operating conditions One-point wiring simplifies installation Rugged base rail included for improved installation and handling
