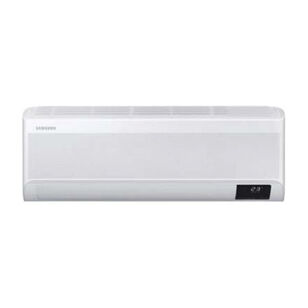

Samsung WindFree™ DVM S Series AM005TNVDCH/AA High Wall Indoor Unit, 208-230 V, 0.16 A, 1 Phase, HIPS
Samsung WindFree™ DVM S Series AM005TNVDCH/AA High Wall Indoor Unit, 208-230 V, 0.16 A, 1 Phase, HIPS
Samsung High Wall Indoor Unit, DVM S Series, Model: AM005TNV, 208-230 V, 0.16 A, 1.5 kW, 1.7 kW, 60 Hz, 1 ph Phase, 3 Fan Speeds, 5000 Btu/hr Cooling, 5800 Btu/hr Heating, 173 cfm, Connection Type: Flared, 15 A Fuse Rating, 31 dBA Sound Level, Wall Mounting, HIPS, 32-5/16 in Overall Length, 8-7/16 in Overall Width, 11-3/4 in Overall Height, Additional Information: R-410A Refrigerant
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,386.72 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationR-410A Refrigerant
Amperage Rating0.16
BTU Rating5000 Btu/hr Cooling, 5800 Btu/hr Heating
CFM Rating173
Connection TypeFlared
Frequency Rating60
Fuse Rating15
MaterialHIPS
ModelAM005TNV
Mounting TypeWall
Number of Fan Speeds3
Overall Height11-3/4
Overall Length32-5/16
Overall Width8-7/16
Phase1
Power Rating1.5 kW, 1.7 kW
SeriesDVM S Series
Sound Level31
Voltage Rating208-230
Additional Information
cETLus Listed
Features & Benefits
- Compatible with Samsung DVM S, DVM S Water, and DVM S Eco systems (AM**********AA). Electro-static, washable, pleated filters as standard (included with unit) 7-segment digital display on front of unit to display temperature and unit status High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection. Wind-Free™ function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants. The Wind-Free™ feature is optional and can be enabled using central or local control options (MWR-SH11UN, MWR-WE13UN, MWR-WG00*N, and AR-EH0*U only). HIPS chassis certified to UL94 V0 with galvanized steel mounting bracket The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a single, antibacterial, crossflow type Three fan speed settings and auto setting Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The unit shall be operated via a wireless or wired remote control with DDC type signal The unit shall integrate with the Samsung NASA Controls Network Solution Controls shall integrate with a BMS system Control wiring shall be 2 X 16 AWG shielded wire
Samsung WindFree™ DVM S Series AM005TNVDCH/AA High Wall Indoor Unit, 208-230 V, 0.16 A, 1 Phase, HIPS
BrandSamsung
MFG #AM005TNVDCH/AA
Keller #1319518
