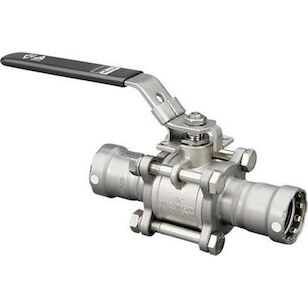

Viega MegaPress 86410 Ball Valve, 1 in, Press x Press, Carbon Steel, 250 psi
Viega MegaPress 86410 Ball Valve, 1 in, Press x Press, Carbon Steel, 250 psi
Viega MegaPress Ball Valve, 1 in Nominal, Press x Press Connection, Full Port, 250 psi, Manual Actuator, 3.33 in Top to Inlet Center, Lockable Handle Operator, Carbon Steel Body, PTFE Seat, 316 Stainless Steel Stem, FKM Seal, 304 Stainless Steel Handle, 316 Stainless Steel Ball, Finish: Zinc Nickel-Coated, 14 to 284 deg F, Domestic/Import: Import, Additional Information: Model 5975.8, 3-Piece
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$251.70Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandViega
Actuator TypeManual
Additional InformationModel 5975.8, 3-Piece
Ball Material316 Stainless Steel
Body MaterialCarbon Steel
Connection TypePress x Press
Domestic/ImportImport
FinishZinc Nickel-Coated
Handle Material304 Stainless Steel
Nominal Size1
Operator TypeLockable Handle
Port TypeFull
Pressure Rating250
Seal MaterialFKM
Seat MaterialPTFE
Stem Material316 Stainless Steel
Temperature Rating14 to 284
Top to Inlet Center3.33
Additional Information
ASME B31|IAPMO Z1157|MSS SP-110
Features & Benefits
- Approved for more applications than any other carbon steel pipe press fitting system Suitable for use with ASTM Schedule 5 to Schedule 40 carbon steel pipe Corrosion-resistent zinc-nickel coating Nearly 150 engineered fitting configurations from 2-1/2" to 4" Approved for underground applications, in accordance with code and local AHJ The same hanger and support requirements as threaded systems Viega Smart Connect Technology helps easilty identify unpressed connections and provides installers added confidence in the integrity of connections UL and FM listed for fire protection applications
Marketing Information
The MegaPress FKM 3-piece carbon steel ball valve is equipped with a full port, 316 stainless steel 3-piece body and zinc-nickelcoated steel press ends. The ball valve features an FKM sealing element, a 420 stainless grip ring, a 304 stainless separator ring, PTFE stem seals, a locking metal handle, and Viega's Smart Connect technology for easy identification of unpressed connections during pressure testing.
Viega MegaPress 86410 Ball Valve, 1 in, Press x Press, Carbon Steel, 250 psi
BrandViega
MFG #86410
Keller #1319948
My Part ##
Last Ordered#
$251.70Â /Â ea
