ASSE 1013|cCSAus Certified|cULus Listed|FM Approved|NSF Certified

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve Alert features available with add-on sensor connection kit 304 (Schedule 40) stainless steel housing and sleeve Replaceable check disc rubber Extremely compact design allows for small enclosures to be used Torsion spring check modules for ease of serviceability Groove couplings for easy installation and pipe alignment Drip tight shutoff valves Bottom mounted stainless steel relief valve

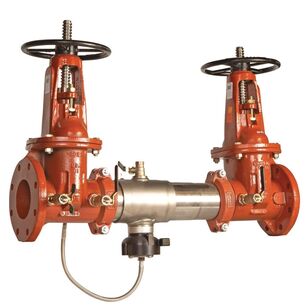

This Colt™ 4 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to back siphonage and or backpressure. This extremely compact and lighter than traditional designed assembly is approved for horizontal installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow. Ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards. This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check modules, resilient seated gate valves with outside stem and yoke, test cocks, and a bottom mounted pressure relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.
