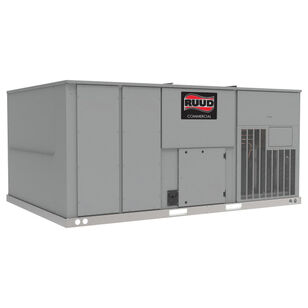

Rheem® RACG2T RACG2T180ACG000BACA0A Packaged Air Conditioner, 15 ton Nominal, 176000 Btu/hr Cooling BTU, 208/230 V
Rheem® RACG2T RACG2T180ACG000BACA0A Packaged Air Conditioner, 15 ton Nominal, 176000 Btu/hr Cooling BTU, 208/230 V
Rheem® Packaged Air Conditioner, Model: RACG2T, 15 ton Nominal Capacity, 172000 Btu Cooling Capacity, 176000 Btu/hr Cooling, 208/230 V, 4.2 A Full Load Condenser, 13.6 A Full Load Evaporator, 16 kW Wattage, 3/4 hp Outdoor, 1110 rpm Rotational Speed, 60 Hz, 3 ph Phase, Scroll Compressor, 6000 to 12000 cfm, 14.2 IEER, 11 EER Rating, 1 Speed, 2 Stages, R-410A Refrigerant, 1-Speed Direct Outdoor, Belt Drive Indoor Drive, 23.8 sq-ft Face Area Indoor, 36.3 sq-ft Face Area Outdoor Coil, 1 in Drain Connection, (8) 20 x 24 x 2 in Filter, 100 A Fuse Rating, Core Command and Phase Monitor Control, 18 ga Steel, Finish: Galvanized, 58.5 in H x 126.94 in W x 86.19 in D, Additional Information: VFD Medium, Hinged Access
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$45,750.38 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationVFD Medium, Hinged Access
Amperage Rating4.2 A Full Load Condenser, 13.6 A Full Load Evaporator
CFM Rating6000 to 12000
Coil Rating23.8 sq-' Face Area Indoor, 36.3 sq-' Face Area Outdoor
Compressor TypeScroll
Connection Size1 " Drain
Control TypeCore Command and Phase Monitor
Cooling BTU Rating176000
Cooling Capacity172000
Dimensions58.5 " H x 126.94 " W x 86.19 " D
Drive Type1-Speed Direct Outdoor, Belt Drive Indoor
EER Rating11
Filter Size(8) 20 x 24 x 2
FinishGalvanized
Frequency Rating60
Fuse Rating100
HP Rating3/4 hp Outdoor
IEER Rating14.2
IndustryHVAC
Material18 ga Steel
ModelRACG2T
Nominal Capacity15
Number of Speeds1
Number of Stages2
Phase3
Refrigerant TypeR-410A
Rotational Speed1110
Voltage Rating208/230
Warranty1 Year Parts, 5 Year Compressor
Wattage16
Additional Information
ASHRAE 90.1-2019|cULus Listed|DOE 2023
Features & Benefits
- Factory charged with R410A HFC refrigerant Wired and run tested Scroll compressors with internal line break overload and high pressure protection Forkable base rails for easy handling and lifting Cooling operation up to 125 deg F ambient Micro channel evaporator and condenser coil Base pan with drawn supply and return opening High pressure and low pressure/loss of charge protection with built-in Smart Logic Insulation encapsulated throughout entire unit High performance belt drive motor with variable pitch pulleys and quick adjust belt system
Documents
Marketing Information
Renaissance 15 to 25 ton products are designed with a flexible footprint with multiple return air configurations to choose from, allowing seamless replacement of most other manufacturer's products with NO roof curb adapter. These units also boast the reliability and serviceability features associated with Rheem®'s renaissance line, including the Qwik-Clean drain pan, the Qwik-Slide Blower assembly and PlusOne® Velocifin™ heat exchanger with Qwik-Slide removability. The Renaissance 15 to 25 ton products offer up to 14.8 IEER/11.0 EER and include many innovative features that enhance overall and part load performance to meet DOE 2023 requirements.
