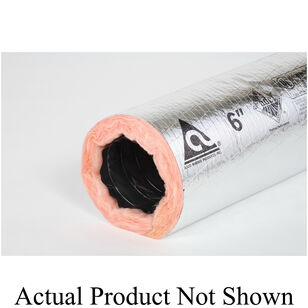

ATCO 13602509 036RF 9X25 AT1012 30 SERIES R6 DUCT SILVER JACKET BLACK POLYSTER CORE BOX
ATCO 13602509 036RF 9X25 AT1012 30 SERIES R6 DUCT SILVER JACKET BLACK POLYSTER CORE BOX
Atco Flexible Air Duct, Insulated, Series: 036 Series, 9 in Inside Dia, 25 ft Length, 5000 fpm, R6 Insulation Value, 0.05 perm Vapor Transmission, -1 to 6 in-WG, -20 to 140 deg F, For Use With: Complete Air Duct System and/or a Branch Duct Connecting to Mixing Boxes, Diffusers, Light Troffers, Room Inlets or other Terminal Devices, Polyester/Fiberglass/Metalized Polyester, Silver, Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$147.19Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandAtco
Domestic/ImportDomestic
FinishSilver
Flow Rate5000
IndustryHVAC
Inside Diameter9"
Insulation ValueR6
Length25
MaterialPolyester/Fiberglass/Metalized Polyester
Pressure Rating-1 to 6
Series036 Series
Suitable For Use WithComplete Air Duct System and/or a Branch Duct Connecting to Mixing Boxes, Diffusers, Light Troffers, Room Inlets or other Terminal Devices
Temperature Rating-20 to 140
TypeInsulated
Vapor Transmission0.05
Additional Information
ADC Certified|ASTM C-518|Cities of Chicago|County of Dade (Florida)|California State Fire Marshal|GreenGuard Certified|HUD Approved|ICC-ES ESR-1268|IMC Approved|IRC Approved|New York|NFPA 90A/90B|San Francisco|UL 181|UMC 10-1
Features & Benefits
- Air-tight inner core - energy efficient/no fiberglass erosion into air stream Encapsulated wire helix - no unraveling when cut to length, quick installation Smooth inner core - low friction loss, low operating cost Thick blanket of fiberglass insulation energy efficient/excellent thermal characteristics Tough reinforced metallized polyester jacket - tear and puncture resistant/low maintenance Lightweight compact carton reduces warehouse and jobsite handling cost Metallized polyester vapor barrier with tri-directional reinforcements 2-ply polyester core
Marketing Information
Atco #030, 036, and 031 are UL 181, Class 1 Air Ducts and are manufactured with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket. The inner core of all three products is air-tight and designed for low-to-medium operating pressures in HVAC systems. Atco #036 and 031 have increased insulation for superior thermal performance.
