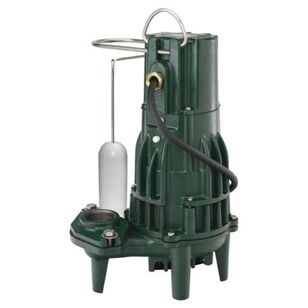

ZOELLER 189-0008 2HP 230V PUMP
ZOELLER 189-0008 2HP 230V PUMP
Zoeller® Submersible Effluent Pump, 180 Series, Model: F189, 230 VAC, 11.2 A, 60 Hz, 2 hp, 3450 rpm Speed, 145 gpm Flow Rate, 3 ph, 1-1/2 in Discharge, 130.5 gal Capacity, 137 ft Maximum Feet of Head, Ball Bearing, 130 deg F, Bronze Impeller, Cast Iron, 19-5/16 in H, Epoxy Powder-Coated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,201.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandZoeller®
Amperage Rating11.2 A
Bearing TypeBall
Capacity130.5 gal
Dimensions19-5/16" H
Discharge Size1-1/2"
FinishEpoxy Powder-Coated
Flow Rate145 gpm
Frequency Rating60 Hz
HP Rating2 hp
Impeller MaterialBronze
MaterialCast Iron
Maximum Feet of Head137'
Phase3 ph
Series180 Series
Speed Rating3450 rpm
Temperature Rating130 deg F
Voltage Rating230 VAC
Warranty18 Month
Features & Benefits
- Float operated, submersible, two-pole mechanical switch
- Durable, cast iron construction
- Cast iron switch case, base, motor and pump housing
- No sheet metal parts to rust or corrode
- Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
- Oil-filled, hermetically-sealed, automatic reset thermal overload protection (1 ph)
- Neoprene square ring and gasket
- Stainless steel carbon and ceramic rotary shaft seal
- Upper and lower ball bearing running in a bath of oil
- All 180/4180 series pumps pass 3/4 in spherical solids
- Corrosion-resistant, powder-coated epoxy finish
Documents
ZOELLER 189-0008 2HP 230V PUMP
BrandZoeller®
MFG #189-0008
Keller #1326066
My Part ##
Last Ordered#
$2,201.00Â /Â ea
