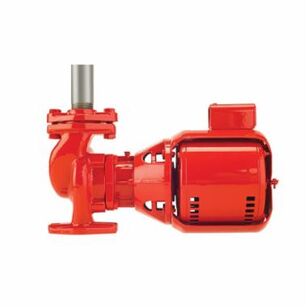

ARMSTRONG H Series 116431MF-132 Maintenance-Free Circulating Pump, 160 gpm, 115 V, 50/60 Hz, 175 psi Max Pressure
ARMSTRONG H Series 116431MF-132 Maintenance-Free Circulating Pump, 160 gpm, 115 V, 50/60 Hz, 175 psi Max Pressure
ARMSTRONG Maintenance-Free Circulating Pump, Series: H Series, Model: H51, 160 gpm Flow Rate, 57 ft Maximum Head, 115 V, 50/60 Hz, 175 psi Maximum Pressure, 1800 rpm Motor Speed Rating, 1/4 hp, 1 in Connection, NPT Connection, 5 in Impeller Diameter, 1 ph, In-Line Mounting, 225 deg F, Sleeve Bearing, Cast Iron, Painted, Red, 17-1/4 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandARMSTRONG
Bearing TypeSleeve
ColorRed
Connection Size1
Connection TypeNPT
Dimensions17-1/4 " L
FinishPainted
Flow Rate160
Frequency Rating50/60
HP Rating1/4
Impeller Diameter5
IndustryPlumbing
MaterialCast Iron
Maximum Head57
Maximum Pressure175
ModelH51
Motor Speed Rating1800
Mounting Type"-Line
Phase1
SeriesH Series
Temperature Rating225
Voltage Rating115
Features & Benefits
- Long term trouble-free operation - proven seal design made from strong and long-lasting materials for extended operating life, durable and trusted design Three-piece modular construction using a universal replacement shaft and bearing module for efficient parts inventory Durable and fully serviceable design for repeat pump overhauls and repairs Three-piece modular construction and back pull-out design for easy replacement of wear components
Documents
Marketing Information
The ARMSTRONG S&H circulators now include an ECM motor option and deploy a proven fixed speed design, which both are cost effective, durable and easy to maintain. Models are available in the traditional sleeve bearing design as well as the new, permanently lubricated, maintenance-free design.
