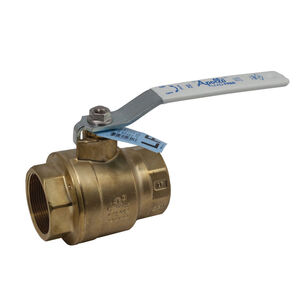

Apollo® 77FLF-100 Series 77FLF10101 2-Piece Ball Valve, 1/4 in, FIPT, Brass, 600 psi
Apollo® 77FLF-100 Series 77FLF10101 2-Piece Ball Valve, 1/4 in, FIPT, Brass, 600 psi
Apollo® 2-Piece Ball Valve, 77FLF-100 Series, 1/4 in Nominal, FIPT Connection, Full Port, Standard, 600 psi, 1.62 in Inlet to Outlet Length, 1.61 in Top to Inlet Center, 0.38 in Opening, Lever Handle Operator, Brass Body, RPTFE Seat, Brass Stem, RPTFE Packing, Polyvinyl/Steel Handle, Brass Ball, Lead-Free, Bronze/Yellow, 0 to 400 deg F, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$38.39 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationPotable Water, Heating, Cooling, Utility and Industry Applications
Ball MaterialBrass
Body MaterialBrass
ColorBronze/Yellow
ConfigurationStandard
Connection TypeFIPT
Domestic/ImportDomestic
Handle MaterialPolyvinyl/Steel
Inlet to Outlet Length1.62
Nominal Size1/4
Opening Size0.38
Operator TypeLever Handle
Packing MaterialRPTFE
Port TypeFull
Pressure Rating600
Seat MaterialRPTFE
Series77FLF-100 Series
Stem MaterialBrass
Temperature Rating0 to 400
Top to Inlet Center1.61
Warranty5 Year
Shipping Dimensions (L x W x H)5.31" x 2.72" x 1.61"
Additional Information
ARRA Compliant|cCSAus b356|cULus Listed|cUPC Certified|Federal Public Law 111-380|FM 1140|IAPMO/ANSI Z1157|MSS SP 110|NSF/ANSI 372|NSF/ANSI/CAN 61|UL 125/258/842/1477
Features & Benefits
- Lead-free materials and approvals Heavy pattern forged design Adjustable stem packing Blowout-proof stem Dezincification-resistant Silicone-free assembly 100% factory tested Made in the USA
Marketing Information
The Apollo® 77FLF-100 Series is a lead-free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, two-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly made in the USA.
Apollo® 77FLF-100 Series 77FLF10101 2-Piece Ball Valve, 1/4 in, FIPT, Brass, 600 psi
BrandApollo®
MFG #77FLF10101
Keller #1328592
My Part ##
Last Ordered#
$38.39 / ea
