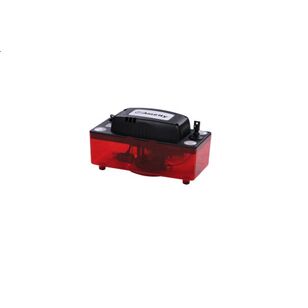

DiversiTech® ULTRACP-22 Condensate Pump, 120 V, 1.9 A, 1/30 hp, 132 gph
DiversiTech® ULTRACP-22 Condensate Pump, 120 V, 1.9 A, 1/30 hp, 132 gph
DiversiTech® Condensate Pump, 120 V, 1.9 A, 1/30 hp HP Rating, 60 Hz, NEMA 5-15, 132 gph, 3/8 in Discharge, 0.5 gal Tank, 22 ft Suction Lift, 4 Inlets, 160 deg F, Additional Information: GPH (Gal./Hr.) @ 10 Ft. Lift: 108; Max Lift Height (Ft.): 22
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$212.66 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandDiversiTech®
Additional InformationGPH (Gal./Hr.) @ 10 '. Lift: 108; Max Lift Height ('.): 22
Amperage Rating1.9
ApplicationFor HVAC/R applications
Discharge Size3/8
Enclosure TypeNEMA 5-15
Flow Rate132
Frequency Rating60
HP Rating1/30
IndustryHVAC
Number of Inlets4
Suction Lift22
Tank Size0.5
Temperature Rating160
Voltage Rating120
Shipping Dimensions (L x W x H)12.25" x 6.5" x 7.5"
Additional Information
UL Listed
Features & Benefits
- LED indicators confirm pump status Built-in safety overflow switch Handles condensate up to 160 deg F Removable check valve for easy cleaning Suitable for condensate up to 160 deg F Vibration dampening feet and motor mounts minimize sound
Marketing Information
The Asurity® ULTRACP-22 condensate pump is a 120 V pump with 22 ft of lift. It comes with innovative features such as a translucent tank for easy and fast inspection, vibration dampening feet and motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve and detailed installation instructions. Two 1/4 in Quick Connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut down the system and prevent flooding, an important safety feature.
DiversiTech® ULTRACP-22 Condensate Pump, 120 V, 1.9 A, 1/30 hp, 132 gph
BrandDiversiTech®
MFG #ULTRACP-22
Keller #1331865
