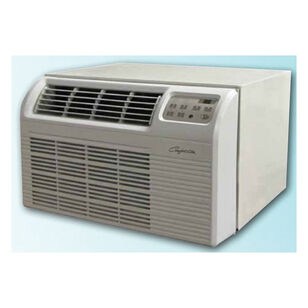

COMFORT AIRE PTTE12A-1 AIR CNDNR/HEAT
COMFORT AIRE PTTE12A-1 AIR CNDNR/HEAT
Comfort-Aire® Package Terminal Unit, 208/230 V, 15.2 A, 3.5 kW, 60 Hz, 1 ph, 12000 Btu/hr Cooling BTU Rating, 271 cfm, 9.8 EER, 3.49 pt/hr Dehumidification Rating, R-410, Rotary Compressor, 9.8 Energy Efficiency Ratio, Microprocessor Control, 79 dBA, Grommet Mount, 26 in Overall Width, 21.2 in Overall Depth, 15.6 in Overall Height, Additional Information: LCDI 20 A Power Cord, 3 Fan Speeds
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,496.98 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHeat Controller
AHRI CertifiedYes
Amperage Rating15.2 A
Compressor TypeRotary
Control TypeMicroprocessor
Cooling BTU Rating12000 Btu/hr
Dehumidification Rating3.49 pt/hr
EER Rating9.8
Energy Efficiency Ratio9.8
Flow Rate271 cfm
Frequency Rating60 Hz
IndustryHVAC
Mounting TypeGrommet
Overall Depth21.2"
Overall Height15.6"
Overall Width26"
Phase1 ph
Power Rating3.5 kW
Refrigerant TypeR-410
Sound Level79 dBA
Voltage Rating208/230 V
Warranty5 Year Limited
Additional Information
LCDI 20 A Power Cord, 3 Fan Speeds
Features & Benefits
- High energy efficiency ratios (EERs) save on utility costs, 24 hr On/Off timer
- Indoor sound reduction is achieved through the unit's two permanently lubricated fan motors, compressor has rubber grommet-mounting
- Allows outdoor air into room through filtered vent
- On-board computer diagnostics help prolong the life of the unit and simplify service, LED indicator flashes error codes
Documents
Marketing Information
Our 26 in TTW air conditioners and heat pumps provide year round comfort, room by room, for hotels, motels, apartments, office buildings, schools, nursing homes and more. Designed for quick installation in most 16 x 26 in wall sleeves, they're great for new construction as well as replacements, especially where a standard 42 in PTAC may be too large. Combining attractive appearance with state-of-the art technology, these units minimize energy usage while ensuring guest comfort. Available in cooling only, electric heat and heat pump versions. For installation flexibility, the unit is designed to be controlled either by it's full function on-board control panel or by a wireless remote control. All functions of the unit can be controlled in room using the easy-to-understand touchpad. LEDs correspond to mode and fan operation, indicating unit status and the set point temperature is adjusted with up and down arrows 61 to 86 deg F.
COMFORT AIRE PTTE12A-1 AIR CNDNR/HEAT
BrandHeat Controller
MFG #PTTE12A-1
Keller #1331937
