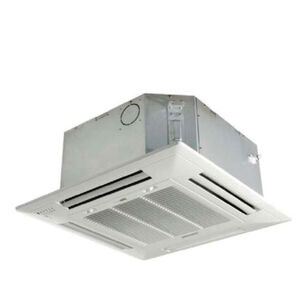

Samsung ASS035ZTEJ AVXCMH060CE Cassette, 208-230 V, 0.5 A, 20000 Btu/hr, 23000 Btu/hr Btu, 1 ph, Steel
Samsung ASS035ZTEJ AVXCMH060CE Cassette, 208-230 V, 0.5 A, 20000 Btu/hr, 23000 Btu/hr Btu, 1 ph, Steel
Samsung Cassette, Model: ASS035ZTEJ, 208-230 V, 0.5 A, 55 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 20000 Btu/hr, 23000 Btu/hr, 431 cfm, 512 cfm CFM Rating, Flared Connection Type, 1/4 in, 1/2 in Connection, R-410A, 44 dB, Steel, Galvanized, 22-5/8 in Overall Length, 22-3/4 in Overall Width, 10-1/4 in Overall Height, For Use With: Heat Pump and Heat Recovery Systems, Additional Information: (1) Turbo Fan, Non-Feedback SSR Motor
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,777.68Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information(1) Turbo Fan, Non-Feedback SSR Motor
Amperage Rating0.5
BTU Rating20000 Btu/hr, 23000 Btu/hr
CFM Rating431 cfm, 512 cfm
Connection Size1/4 ", 1/2 "
Connection TypeFlared
FinishGalvanized
Frequency Rating60
MaterialSteel
ModelASS035ZTEJ
Number of Fan Speeds3
Overall Height10-1/4
Overall Length22-5/8
Overall Width22-3/4
Phase1
Power Rating55
Refrigerant TypeR-410A
Sound Level44
Suitable For Use WithHeat Pump and Heat Recovery Systems
Voltage Rating208-230
Additional Information
ETL Listed|ETLc Listed|UL 94 Flammability V0
Features & Benefits
- Electro-static, washable, pleated filter as standard Built-in drain pump with check valve, maximum 29 in lift Knock-out for outside air capability ( 4.2% of total cfm with use of a booster fan) Insulated, galvanized steel chassis with a UL 94 V0 fascia panel The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a single turbo type fan Three-fan speed settings and auto setting The unit shall be operated via a wireless or wired remote control with DDC type signal The unit shall integrate with the Samsung controls network solution Controls shall integrate with a BMS system Control wiring shall be 16 AWG shielded wire
Documents
Samsung ASS035ZTEJ AVXCMH060CE Cassette, 208-230 V, 0.5 A, 20000 Btu/hr, 23000 Btu/hr Btu, 1 ph, Steel
BrandSamsung
MFG #AVXCMH060CE
Keller #1332610
