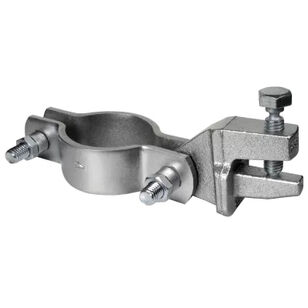

AFCON® Fig AF730 Series 0502005719 Seismic Clamp, 8 in Pipe, Carbon Steel, Plain
AFCON® Fig AF730 Series 0502005719 Seismic Clamp, 8 in Pipe, Carbon Steel, Plain
AFCON® Seismic Clamp, Series: Fig AF730 Series, 8 in Pipe, Carbon Steel, Plain, 15.2 in Overall Length, Additional Information: 1885 lbf/kN Longitudinal/Lateral Rating as per cULus Listed, 1520 lbf/kN Longitudinal, 2970 lbf/kN Lateral Rating as per FM Approved, Longitudinal and Lateral
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$233.90 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandFPPI®
Additional Information1885 lbf/kN Longitudinal/Lateral Rating as per cULus Listed, 1520 lbf/kN Longitudinal, 2970 lbf/kN Lateral Rating as per FM Approved, Longitudinal and Lateral
FinishPlain
MaterialCarbon Steel
Overall Length15.2
Pipe Size8
SeriesFig AF730 Series
Additional Information
ANSI/FM 1950-16|ANSI/UL 203A|ASCE 7|cULus Listed|FM 1950-13|IBC Certified|MSS SP 127|NFPA 13
Features & Benefits
- Torque off setscrew and nuts provide a visual indication that the desired installation torque values have been achieved Eliminates brace member eccentricity by concentrically loading 1 in and DN25 brace pipes
Documents
Marketing Information
A seismic clamp designed to connect a piping system to a brace member. The AF730 rigidly braces piping systems subjected to horizontal, longitudinal and lateral seismic loads. The AF730 may also be installed to rigidly brace piping systems subjected to vertical seismic loads.
AFCON® Fig AF730 Series 0502005719 Seismic Clamp, 8 in Pipe, Carbon Steel, Plain
BrandFPPI®
MFG #0502005719
Keller #1334160
