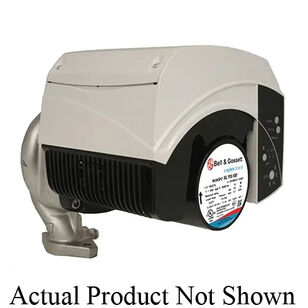

Bell & Gossett ecocirc® XL ecocirc® XL N 70-145 104465LF Circulator Pump, 55 to 1400 W, 208-230 V, 0.6 to 6 A, 50/60 Hz
Bell & Gossett ecocirc® XL ecocirc® XL N 70-145 104465LF Circulator Pump, 55 to 1400 W, 208-230 V, 0.6 to 6 A, 50/60 Hz
Bell & Gossett Circulator Pump, Model: ecocirc® XL N 70-145, 55 to 1400 W, 208-230 V, 0.6 to 6 A, 50/60 Hz, 175 psi Maximum, 2 hp HP Rating, 1 in, 1-1/4 in, 1-1/2 in in Connection, NPT Connection Type, 1 ph, 14 to 230 deg F, NEMA 2, IP44, Sleeve Bearing, Stainless Steel, 11.5 in H x 9.53 in W x 14.84 in D, Additional Information: ECM Motor Type, Stainless Steel Impeller Material, (2) Bolts
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$16,247.20 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Additional InformationECM Motor Type, Stainless Steel Impeller Material, (2) Bolts
Amperage Rating0.6 to 6
Bearing TypeSleeve
Connection Size1 ", 1-1/4 ", 1-1/2 "
Connection TypeNPT
Dimensions11.5 " H x 9.53 " W x 14.84 " D
Enclosure TypeNEMA 2, IP44
Frequency Rating50/60
HP Rating2
IndustryHydronics
MaterialStainless Steel
Maximum Pressure175
Modelecocirc XL N 70-145
Phase1
Power Rating55 to 1400
Temperature Rating14 to 230
Voltage Rating208-230
Additional Information
CSA C22.2 File No. 108|cULus Listed|NSF/ANSI 372|UL 1004-1/1004-7|UL 60730-1|UL 778
Features & Benefits
- Economical operation - efficient ECM motor, optimized hydraulics, low operational costs Chilled water applications - electronics separated from the pump to prevent condensation, worry-free operation even at 14 deg F User friendly interface, four logically placed buttons, intuitive interface, easy to set and operate Pump protection - built-in dry-run protection, stops pump if no water, prevent damage/repairs High visibility - clear display, large figures and symbols, easy to view pump status
Documents
Marketing Information
The ecocirc® XL is a highly efficient circulator that enhances commercial hydronic systems with superior quality and dependability. State-of-the-art hydraulics, advanced motor design, intelligent controls and smart communication capabilities highlight expert engineering across a broad range of HVAC and plumbing applications.
