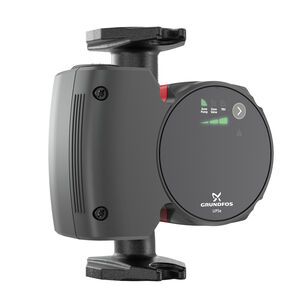

Grundfos UPSe 15-58 FR 115V 9H 92603107 Circulation Pump, 13.6 gpm, 38 W, 115 V, 0.7 A, 60 Hz, 175 psi Max Pressure
Grundfos UPSe 15-58 FR 115V 9H 92603107 Circulation Pump, 13.6 gpm, 38 W, 115 V, 0.7 A, 60 Hz, 175 psi Max Pressure
Grundfos Circulation Pump, Model: UPSe 15-58 FR 115V 9H, 13.6 gpm Flow Rate, 19 ft Maximum Head, 38 W, 115 V, 0.7 A, 60 Hz, 175 psi Maximum Pressure, Connection Type: Flanged, 32 to 131 deg F, NEMA 2 Enclosure, Cast Iron, Electrocoated, 5.3 in H x 6.5 in W, Additional Information: <25 dBA Sound Level, 1/2 in Bolt Hole
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$272.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information<25 dBA Sound Level, 1/2 " Bolt Hole
Amperage Rating0.7
Connection TypeFlanged
Correct Item GroupHydronic Pumps
Dimensions5.3 " H x 6.5 " W
Enclosure TypeNEMA 2
FinishElectrocoated
Flow Rate13.6
Frequency Rating60
IndustryHydronics
MaterialCast Iron
Maximum Head19
Maximum Pressure175
ModelUPSe 15-58 FR 115V 9H
Power Rating38
Temperature Rating32 to 131
Voltage Rating115
Additional Information
cULus Listed|FCC Approved
Features & Benefits
- Best HI energy rating on the market Self-venting pump Dry-running protection Easy wiring Robust startup Troubleshooting aid with caution, warning and alarm lights Replacement compatibility check through the Grundfos GO app.
Documents
Marketing Information
UPSe is a high-efficiency circulator fitted with an electronically commutated motor. It has been designed for circulating liquids in heating systems and offers the highest HI energy rating on the market. The pump features a wide range of controls, featuring constant-pressure, proportional-pressure and constantspeed curves, each with three settings, making it suitable for almost any heating application. With the use of the Grundfos GO replacement compatibility check, it is easier than ever to make your selection. The new toolless, removeable power connector results in fast and easy installation. Fewer callbacks can be expected due to its robust startup, self-venting ability and dry-running protection. Troubleshooting is also fast and easy by using error codes on the pump user interface. A terminal box with conduit connections is provided for power connection.
Grundfos UPSe 15-58 FR 115V 9H 92603107 Circulation Pump, 13.6 gpm, 38 W, 115 V, 0.7 A, 60 Hz, 175 psi Max Pressure
BrandGrundfos
MFG #92603107
Keller #1336282
My Part ##
Last Ordered#
$272.00Â /Â ea
