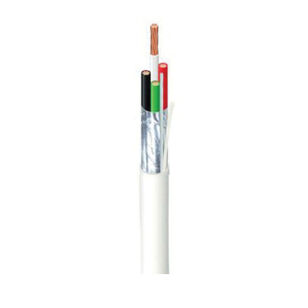

Southwire® P40073-1D Thermostat Wire, 300 VAC, 4 -Conductor, 18 AWG Conductor, Stranded, Copper Conductor, 500 ft L
Southwire® P40073-1D Thermostat Wire, 300 VAC, 4 -Conductor, 18 AWG Conductor, Stranded, Copper Conductor, 500 ft L
Southwire® Thermostat Wire, 300 VAC, 4 Conductors, Copper Conductor, 18 AWG Conductor, 186 mil Outside Dia, 500 ft Length, 7 Strands, Solid/Stranded: Stranded, PVC Insulation, Black/Red Insulation, PVC, White, -4 to 167 deg F, Reel
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$471.41 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSouthwire®
ApplicationFor remote control, signaling and power limited circuits security, sound and audio, public address, intercom, alarm and access control circuits applications
Conductor MaterialCopper
Conductor Size18
Insulation ColorBlack/Red
Insulation MaterialPVC
Jacket ColorWhite
Jacket MaterialPVC
Length500
Number of Conductors4
Outside Diameter186
Package TypeReel
Solid/StrandedStranded
Strands7
Temperature Rating-4 to 167
Voltage Rating300
Additional Information
UL 1424 FPLP/13 CL3P/444 CMP|NEC Article 760, 725|Flame Test NFPA 262 (UL 910)|CSA FT6|RoHS Compliant
Features & Benefits
- Stranded or solid bare copper as indicated on individual product specification Cabled, with ripcord and jacketed
Documents
Southwire® P40073-1D Thermostat Wire, 300 VAC, 4 -Conductor, 18 AWG Conductor, Stranded, Copper Conductor, 500 ft L
BrandSouthwire®
MFG #P40073-1D
Keller #1337589
My Part ##
Last Ordered#
$471.41 / ea
