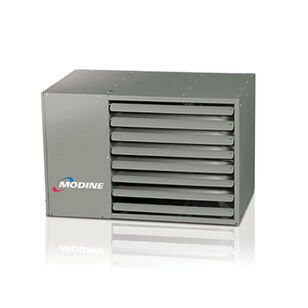

MODINE PTX Series PTX-250SS0111SBAN Gas Fired Unit Heater, 205000 Btu/hr, Natural Gas Fuel, Direct Spark Ignition
MODINE PTX Series PTX-250SS0111SBAN Gas Fired Unit Heater, 205000 Btu/hr, Natural Gas Fuel, Direct Spark Ignition
MODINE Gas Fired Unit Heater, PTX Series, 115 V, 7.15 A, 1/3 hp, 60 Hz, 1 ph Phase, 1075 rpm Rotational Speed, 205000 Btu/hr, 3995 cfm, 721 fpm Flow Rate, Natural Gas Fuel, Direct Spark Ignition, 82 % Efficiency, 18 ft Vent, Vent, Ducted or Ductless: Vent, Steel, Finish: Baked-On Polyester Powder-Coated, 42.53 in L x 31.31 in W x 22.05 in D, Domestic/Import: Domestic, Additional Information: PSC Motor, 2-Stage, Standard Fan Guard, 1/2 in Connection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,933.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMODINE
Additional InformationPSC Motor, 2-Stage, Standard Fan Guard, 1/2 " Connection
Amperage Rating7.15
ApplicationFor residential, commercial or industrial applications that require a low profile units
BTU Rating205000
CFM Rating3995
Dimensions42.53 " L x 31.31 " W x 22.05 " D
Domestic/ImportDomestic
Efficiency82
FinishBaked-On Polyester Powder-Coated
Flow Rate721
Frequency Rating60
Fuel TypeNatural Gas
HP Rating1/3
Ignition TypeDirect Spark
MaterialSteel
Phase1
Rotational Speed1075
SeriesPTX Series
Vent Size18
Voltage Rating115
Warranty10 Year Heat Exchanger
Additional Information
ANSI Z83.8|cETLus Listed|CSA Certified|ETL Listed|UL Listed
Features & Benefits
- In shot burners fire each heat exchanger tube for reliable performance, ease of service and decreased noise on ignition Same size vent and combustion air inlets make installation easier A round vent pipe and combustion air inlet pipe connection The automatic reset vent pressure switch is designed to prevent the operation of the main burner in the event there is restricted venting of the flue Integrated direct spark control board provides digital control of the air mover, inducer, ignition, gas valve and flame sense Control step down transformer used to step down from 115 to 24 V for the gas controls, fan delay relay, field supplied motor start and more Remote flame sensor verifies the ignition of all burners, monitors the flame single and communicated with the integrated circuit board The high limit control switch is mounted in the air stream and will shut-off the gas supply in the event of overheating Designed, engineered and assembled in the USA
Marketing Information
Modine's PTX/BTX is specifically designed for environments with hostile atmospheric conditions, such as chemicals, high humidity or negative pressure. On these units, combustion air is brought in from outside the heated area, either from outdoor air or from an adjacent room, eliminating the need to use contaminated indoor air for combustion. The unit can also be installed in power vented applications if needed.
MODINE PTX Series PTX-250SS0111SBAN Gas Fired Unit Heater, 205000 Btu/hr, Natural Gas Fuel, Direct Spark Ignition
BrandMODINE
MFG #PTX-250SS0111SBAN
