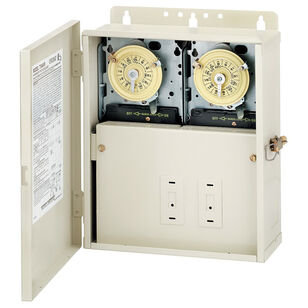

Intermatic® T10404R Control Panel, Metal, Beige
Intermatic® T10404R Control Panel, Metal, Beige
Intermatic® Control Panel, 208-277 V, 3 W Power Consumption, 60 Hz, -40 to 130 deg F, Metal, Beige, 12-7/8 in H x 10-7/8 in W x 4-3/4 in D, Additional Information: 2-Circuit, NEMA 3R Enclosure-Type, 40 A Inductive Load Rating, (2) T104M Mechanisms, 60 Hz Mechanism Supply Voltage Rating, 2 hp Rating, 24 A at 120 VAC 60 Hz, 5 hp Rating, 28 A at 240 VAC, 60 Hz Motor Load Rating, 1000 VA Pilot-Duty Load Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$220.78 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Additional Information2-Circuit, NEMA 3R Enclosure-Type, 40 A Inductive Load Rating, (2) T104M Mechanisms, 60 Hz Mechanism Supply Voltage Rating, 2 hp Rating, 24 A at 120 VAC 60 Hz, 5 hp Rating, 28 A at 240 VAC, 60 Hz Motor Load Rating, 1000 VA Pilot-Duty Load Rating
ApplicationFor distribution or control panel, motor control, pump control, commercial and residential use
ColorBeige
Dimensions12-7/8 " H x 10-7/8 " W x 4-3/4 " D
Frequency Rating60
ItemEnclosureType_enOutdoor type 3R plastic
ItemInductiveLoadRatings_en40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz
ItemInductiveLoadRatingsRanges_en40 A, 120-240 VAC, 60 Hz
ItemInputVoltageRanges_en208-277 VAC, 60 Hz
ItemKnockoutDimensionsBack_en(1) combination 1/2" - 3/4" and (1) 3/4" - 1"
ItemKnockoutDimensionsBottom_en(5) combination 1/2" - 3/4" and (2) combination 3/4" - 1"
ItemKnockoutDimensionsLeft_en(1) combination 1/2" - 3/4"
ItemKnockoutDimensionsRight_en(1) 1 3/4" x 2 3/4"
ItemMarket_enResidential, Commercial
ItemMechanisms_en(2) T104M
ItemMechanismSupplyVoltage_en240/240 VAC, 60 Hz
ItemMotorLoadRatingsRanges_en2 HP, 24 FLA at 120 VAC, 60 Hz, 5 HP, 28 FLA at 240 VAC, 60 Hz
ItemNumberOfCircuits_en2
ItemNumberOfReceptacleSwitchKnockouts2
ItemOperatingTemperatureMaxC54
ItemOperatingTemperatureMaxF130
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemPilotDutyLoadRatings_en1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
ItemPilotDutyLoadRatingsRanges_en1000 VA, 120-240 VAC, 60 Hz
ItemPowerConsumptionMaxW_en3 W
ItemProductDepthIn4.75
ItemProductDepthMm120.7
ItemProductHeightIn12.875
ItemProductHeightMm327
ItemProductWidthIn10.875
ItemProductWidthMm276.2
ItemResistiveLoadRatings_en40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz
ItemResistiveLoadRatingsRanges_en40 A, 120-240 VAC, 60 Hz
ItemSwitchType_enDPST
ItemTungstenLoadRatings_en40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
ItemTungstenLoadRatingsRanges_en40 A, 120-240 VAC, 60 Hz
MaterialMetal
Power Consumption3
Temperature Rating-40 to 130
Voltage Rating208-277
Warranty1 Year Limited
Shipping Dimensions (L x W x H)13.81" x 12.07" x 5.63"
Additional Information
cCSAus Certified
Features & Benefits
- Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M or RC2000M Series mechanisms Load center dead front has two knockouts for switches or GFCIs and one on the side Wiring devices may be installed in these load centers with the use of standoffs Control two-speed pumps with the T10604R
Marketing Information
Can be used as a power center only, or add mechanisms or wiring devices for complete control systems.
Intermatic® T10404R Control Panel, Metal, Beige
BrandIntermatic®
MFG #T10404R
Keller #133823
My Part ##
Last Ordered#
$220.78 / ea
