NSF/ANSI 372

• Valve Pressure Rating 1,000 psi/69 Bar (1/2'' -1'') and 800 psi/55 Bar (1 1/4'' -2'') Non-shock Cold Working Pressure Hose cap not to be used for pressure containment Maximum service temperature 250 degrees F Full port Laser Welded Reversible Handle Easily Adjustable Pack Nut Triple Sealed Stem Silicon Performance Bronze Body Stainless steel ball and stem Blowout-proof Stem Reinforced PTFE Seat Rings Lead-free Press x press female end connections Press leak-detection feature Multiple handle options, including NIB-Seal Dezincification resistant Conforms to MSS SP-110 Conforms to MSS SP-145 NSF/ANSI-372

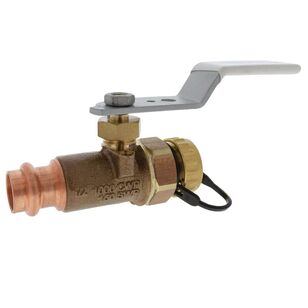

NIBCO engineers have redesigned the top works of the valve to make it easier to install and service. The stem is triple sealed with double O-rings and PTFE packing. The easily accessible, large pack nut can be tightened without removing the handle or using a special wrench. This also allows for the packing to be replaced and serviced. The handle is reversible without disconnecting the valve.585HP ball valve features threaded ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. When performance matters, choose the NIBCO 585HP ball valves for the most advanced and versatile valve option in commercial, residential, mechanical and industrial applications. NIBCO ball valves are backed by the industry leading NIBCO INC. 10-year 125% limited warranty.
