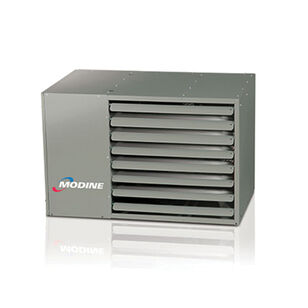

MODINE PTX PTX200AS0111SBAN Gas-Fired Unit Heater, 115 V, 7.15 A, 200000 Btu/hr, 1 ph, Natural Gas Fuel
MODINE PTX PTX200AS0111SBAN Gas-Fired Unit Heater, 115 V, 7.15 A, 200000 Btu/hr, 1 ph, Natural Gas Fuel
MODINE Gas-Fired Unit Heater, Model: PTX, 200000 Btu/hr, 115 V, 7.15 A, 2870 cfm, 1/3 hp, 1 ph, 60 Hz, 1/2 in Connection, Natural Gas Fuel, 22 in Fan, 82 % Efficiency, PSC Motor, 1075 rpm Rotational Speed, 4 in Vent, Direct Spark Ignition, 1 Stages, Bracket Mounting, 15 ft Mounting Height, 53 ft Heat Throw, Aluminized Steel, Polyester Powder-Coated, 52 deg F, 25.81 in H x 42.53 in W x 34.43 in D, Additional Information: 20 ga THK, 643 fpm Outlet Velocity, Standard Fanguard, Separated Combustion and Power Vented Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,536.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMODINE
Additional Information20 ga THK, 643 fpm Outlet Velocity, Standard Fanguard, Separated Combustion and Power Vented Type
Amperage Rating7.15
ApplicationFor residential, commercial or industrial applications that require a low profile units
BTU Rating200000
CFM Rating2870
Connection Size1/2
Dimensions25.81 " H x 42.53 " W x 34.43 " D
Domestic/ImportDomestic
Efficiency82
Fan Size22
FinishPolyester Powder-Coated
Flow Rate643 fpm
Frequency Rating60
Fuel TypeNatural Gas
Heat Throw53
HP Rating1/3
Ignition TypeDirect Spark
MaterialAluminized Steel
ModelPTX
Motor TypePSC
Mounting Height15
Mounting TypeBracket
Number of Stages1
Phase1
Rotational Speed1075
SeriesPTX Series
Temperature Rating52
Vent Size4
Voltage Rating115
Warranty10 Year Heat Exchanger
Additional Information
20 ga THK, 643 fpm Outlet Velocity, Standard Fanguard, Separated Combustion and Power Vented Type
Features & Benefits
- In-shot burners fire each heat exchanger tube for reliable performance, ease of service, and decreased noise on ignition Same-size vent and combustion air inlets make installation easier A round vent pipe and combustion air inlet pipe connection The automatic reset vent pressure switch is designed to prevent the operation of the main burner in the event there is restricted venting of the flue Integrated direct spark control board provides digital control of the air mover, inducer, ignition, gas valve, and flame sense Control Step Down Transformer used to step down from 115v to 24v for the gas controls, fan delay relay, field-supplied motor start, and more Remote flame sensor verifies the ignition of all burners, monitors the flame single, and communicated with the integrated circuit board The high-limit control switch is mounted in the air stream and will shut off the gas supply in the event of overheating
Documents
Marketing Information
Modine's PTX is specifically designed for environments with hostile atmospheric conditions, such as chemicals, high humidity, or negative pressure. On these units, combustion air is brought in from outside the heated area, either from outdoor air or from an adjacent room, eliminating the need to use contaminated indoor air for combustion. The unit can also be installed in power-vented applications if needed.
