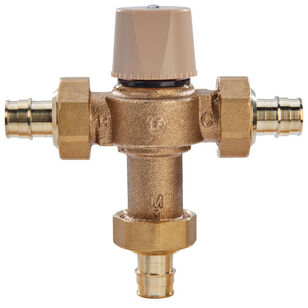

WATTS® LFMMV Series 6551631 Thermostatic Mixing Valve, 1/2 in Nominal, PEX Cold Expansion, 0.5 to 20 gpm, 150 psi
WATTS® LFMMV Series 6551631 Thermostatic Mixing Valve, 1/2 in Nominal, PEX Cold Expansion, 0.5 to 20 gpm, 150 psi
WATTS® Thermostatic Mixing Valve, LFMMV Series, 1/2 in Nominal, PEX Cold Expansion Connection, 150 psi, 0.5 to 20 gpm Flow Rate, Water Media, Copper Silicone Alloy Body, Stainless Steel Disc, Stainless Steel Trim, Buna-N/EPDM Packing, Copper/Polysulfone Softgoods, 120 to 180 deg F, 5-1/2 in L x 5-11/16 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$609.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
ApplicationFor point-of-use installations such as in homes, schools, restaurants, hospitals, beauty salons, public restrooms
Body MaterialCopper Silicone Alloy
Connection TypePEX Cold Expansion
Dimensions5-1/2 " L x 5-11/16 " H
Disc MaterialStainless Steel
Flow Rate0.5 to 20
MediaWater
Nominal Size1/2
Packing MaterialBuna-N/EPDM
Pressure Rating150
SeriesLFMMV Series
Softgoods MaterialCopper/Polysulfone
Temperature Rating120 to 180
Trim MaterialStainless Steel
WarrantyLimited
Additional Information
ASSE 1017, 1069, 1070|CSA B125.3, B125.70|cUPC Certified|IAPMO Listed
Features & Benefits
- Thermal actuation technology for precise temperature control Locking mechanism secures temperature setting
Marketing Information
This 1/2 in lead-free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead-free brass body, cold expansion fitting (CEF/PEX F1960) end connections for PEX-a tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting.
WATTS® LFMMV Series 6551631 Thermostatic Mixing Valve, 1/2 in Nominal, PEX Cold Expansion, 0.5 to 20 gpm, 150 psi
BrandWATTS®
MFG #6551631
Keller #1342799
