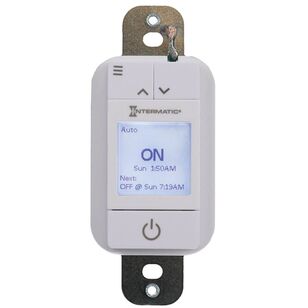

Ascend® Standard 7-Day Programmable Timer, 120 VAC, 15A, White
Ascend® Standard 7-Day Programmable Timer, 120 VAC, 15A, White
The Ascend Standard In-Wall Timer is a 7-Day Programmable Timer featuring a sleek, modern design. The timer can be configured in minutes using a large backlit LCD display and includes pre-programmed templates for easy use. The Ascend Standard features Astronomic dusk-to-dawn settings and automatic Daylight Saving Time adjustments. Neutral required. NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Depth1.33
Height2.75
IndustryLeisure
ItemApplicationCompatibilities_enCFL, Fluorescent, Incandescent, LED
ItemBackupType_enBattery
ItemBatteryServiceType_enNon-replaceable
ItemBatteryType_enLithium Metal
ItemBatteryWeightGrams3.2
ItemChemicalCompositionOfTheBatteryCell_enLithium
ItemColor_enWhite
ItemElectronicBallastLED_en5 A, 600 W
ItemGeneralPurposeLoadRatings_en15 A
ItemIncandescentMultiGangLoadRatings_en8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz
ItemIncandescentMultiGangLoadRatingsRanges_en8 A, 120 VAC, 50/60 Hz
ItemInductiveLoadRatings_en15 A, 120 VAC, 50 Hz, 15 A, 120 VAC, 60 Hz
ItemInductiveLoadRatingsRanges_en15 A, 120 VAC, 50/60 Hz
ItemInputVoltageRanges_en120 VAC, 50/60 Hz
ItemInWallWiringConfigurations_en3-Way, Single
ItemLithiumContentGramsInBattery0.109
ItemMarket_enCommercial, Residential
ItemMaximumOnOffOperations_en42
ItemMechanismType_enDigital/Electrical
ItemMinimumOnOffTime_en1 min
ItemMotorLoadRatingsRanges_en1 HP, 120 VAC, 50/60 Hz
ItemNeutralConnectionRequiredCVL_enYes
ItemNumberOfBatteriesIncluded1
ItemNumberOfLithiumIonCellsInBattery1
ItemNumberOfLithiumMetalCellsInBattery1
ItemOperatingTemperatureMaxC50
ItemOperatingTemperatureMaxF122
ItemOperatingTemperatureMinC-20
ItemOperatingTemperatureMinF-4
ItemOperationFeatures_enAstronomic, Daylight Saving Time
ItemOperationMode_en24 hr, 7 day
ItemProductDepthIn1 1/3
ItemProductDepthMm33.9
ItemProductHeightIn2.75
ItemProductHeightMm69.9
ItemProductWidthIn1.75
ItemProductWidthMm44.4
ItemTungstenLoadRatings_en8 A
ItemWallPlateConfiguration_enSingle-Gang
ItemWattHoursPerBattery0.66
ModelItt-st700w
Width1.75
Shipping Dimensions (L x W x H)2.5" x 3" x 4.88"
Additional Information
Title 20|cULus
Features & Benefits
- Quick, intuitive installation Single-pole or 3-way switches Sleek, Modern Design 7-Day Timer with Automatic Daylight Saving and Astronomic ON/OFF at Dusk or Dawn Intuitive Setup Three pre-programmed schedule templates for convenience Fully customized scheduling for flexibility Program up to 42 unique events Large, easy-to-read backlit LCD screen Non-replaceable battery backup keeps time and date information in the event of a power loss
Marketing Information
The Ascend Standard In-Wall Timer is a 7-Day Programmable Timer featuring a sleek, modern design. The timer can be configured in minutes using a large backlit LCD display and includes pre-programmed templates for easy use. The Ascend Standard features Astronomic dusk-to-dawn settings and automatic Daylight Saving Time adjustments. Neutral required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
