Grundfos CR Series 99917940 1-Stage Centrifugal Pump, 5 hp, 3 ph, 208 to 230/460 V, 2-1/2 in Inlet Connection
Grundfos CR Series 99917940 1-Stage Centrifugal Pump, 5 hp, 3 ph, 208 to 230/460 V, 2-1/2 in Inlet Connection
Grundfos 1-Stage Centrifugal Pump, Series: CR Series, Model: CR 32-1-1, 208 to 230/460 V, Amperage Rating: 13.1 to 11.8/5.9 A, 60 Hz Frequency, HP Rating: 5 hp, Phase: 3 ph, 2-1/2 in Inlet Connection, Outlet Connection Size: 2-1/2 in, 159 gpm Flow Rate, Maximum Pressure: 232.06 psi, Maximum Head: 69.23 ft, 3461 rpm Speed, Motor Type: WEG, Motor Speed Rating: 3500 rpm, Service Factor: 1.15, -22 to 248 deg F, Frame: 182TC, Cast Iron/EPDM/Silicon Carbide/Stainless Steel Housing, 11.7 in Overall Width
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,490.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Amperage Rating13.1 to 11.8/5.9
Flow Rate159
Frame182TC
Frequency Rating60
Housing MaterialCast Iron/EPDM/Silicon Carbide/Stainless Steel
HP Rating5
IndustryPlumbing
Inlet Connection Size2-1/2
Maximum Head69.23
Maximum Pressure232.06
ModelCR 32-1-1
Motor Speed Rating3500
Motor TypeWEG
Outlet Connection Size2-1/2
Overall Width11.7
Phase3
SeriesCR Series
Service Factor1.15
Speed Rating3461
Temperature Rating-22 to 248
Voltage Rating208 to 230/460
Additional Information
AISI 304 Specified | ASTM A536 80-55-06 Specified | EN 1.4301/1563/GJS-500-7 Specified | NSF/ANSI 61 Certified | UL Recognized
Features & Benefits
- Compact, inline design fits into small footprint Easy installation and operation with settings and internal connections done at factory Highly efficient design reduces energy consumption by up to half compared to fixed speed pumps Unique cartridge seal design can be replaced in minutes Spacer coupling allows motor to be left in place during seal replacement Remote control/fieldbus monitoring and data collection Building management system compatible User friendly controller interface with advanced features and functionality Laser welded stainless impellers promote class leading efficiency
Marketing Information

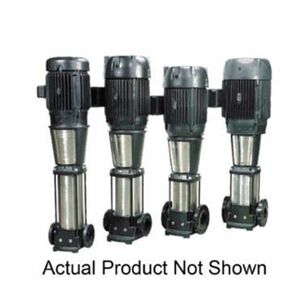

Vertical, multi-stage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron - all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3 ph, fan cooled asynchronous motor.
Grundfos CR Series 99917940 1-Stage Centrifugal Pump, 5 hp, 3 ph, 208 to 230/460 V, 2-1/2 in Inlet Connection
BrandGrundfos
MFG #99917940
Keller #1344063
My Part ##
Last Ordered#
$5,490.00Â /Â ea
