VIC V060816XP0 6IN SS CHECK VLV
VIC V060816XP0 6IN SS CHECK VLV

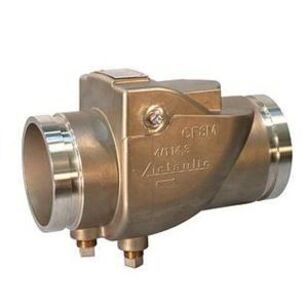

Victaulic® Swing Check Valve, 816 Series, 6 in Nominal, Quick-Vic Connection, 300 psi, 20 to 180 deg F, 12 in Inlet to Outlet Length, 7-1/4 in Top to Inlet Center, Stainless Steel Body, FKM Seat, Stainless Steel Disc, FKM Ball
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,380.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Ball MaterialFKM
Body MaterialStainless Steel
Connection TypeQuick-Vic
Disc MaterialStainless Steel
Inlet to Outlet Length12
Nominal Size6
Pressure Rating300
Seat MaterialFKM
Series816 Series
Temperature Rating20 to 180
Top to Inlet Center7-1/4
Additional Information
ANSI/NSF Certified|ASTM A351 Grade CF8M|CE Certified|cULus Listed
Features & Benefits
- Utilizes grade-P gasket material for improved resistance to typical potable water disinfectants Resilient seat spring return swing check valve designed for horizontal or vertical (upward flow) applications 17-4 PH stainless steel shaft, 17-7 PH stainless steel spring, 316 stainless steel shaft plug and optional drain plug, seat plate, hex head cap screw and shaft bushing, 316/18-8 stainless steel split lock washer PTFE washer, spacer bushing
VIC V060816XP0 6IN SS CHECK VLV
BrandVictaulic®
MFG #V060816XP0
Keller #1344277
My Part ##
Last Ordered#
$7,380.00 / ea
