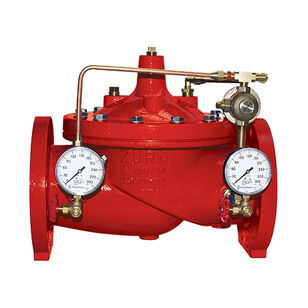

Zurn® 6-ZW209FPCG Fire Protection Pressure Reducing Valve, 6 in Nominal, Grooved, 220 gpm, 300 psi, 33 to 140 deg F
Zurn® 6-ZW209FPCG Fire Protection Pressure Reducing Valve, 6 in Nominal, Grooved, 220 gpm, 300 psi, 33 to 140 deg F
Zurn® Fire Protection Pressure Reducing Valve, 6 in Nominal, Grooved Connection, Full Port, 300 psi, 220 gpm Flow Rate, Water Media, 20 in Inlet to Outlet Length, 12-5/16 in Top to Inlet Center, Material Standard: ASTM A536, Iron Body, Stainless Steel Seat, Stainless Steel Stem, Buna-N Disc, Stainless Steel Trim, Buna-N Softgoods, Lead-Free, 33 to 140 deg F, 15-3/4 in Dia, Additional Information: ZW209FP Model, 40XL2 Hydraulic Check
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$19,099.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZurn®
Additional InformationZW209FP Model, 40XL2 Hydraulic Check
Body MaterialIron
Connection TypeGrooved
Dimensions15-3/4 " Dia
Disc MaterialBuna-N
Flow Rate220
IndustryPlumbing
Inlet to Outlet Length20
Lead-FreeYes
Material StandardASTM A536
MediaWater
Nominal Size6
Port TypeFull
Pressure Rating300
Seat MaterialStainless Steel
Softgoods MaterialBuna-N
Stem MaterialStainless Steel
Temperature Rating33 to 140
Top to Inlet Center12-5/16
Trim MaterialStainless Steel
Additional Information
cULus Listed
Features & Benefits
- Holds downstream pressure to a constant value Pressure gauges, wye strainers and epoxy coating come standard to simplify start-up and maintenance Outlet pressure is field adjustable from 50 to 165 psi
Marketing Information
The ZW209FP pressure reducing valve is pilot operated and utilized in fire suppression systems where steady downstream pressure and high-flow rates are required. The ZW209FP pilot assembly allows the main valve to modulate between closed and open for a constant downstream pressure and automatically seals shut after reaching the pilot setting to prevent possible downstream damage. Its red internal and external epoxy-coating offers corrosion-resistance, while the isolation valves and pressure gauges provide for easy, cost-effective maintenance and repairs for the lowest total cost of ownership.
Zurn® 6-ZW209FPCG Fire Protection Pressure Reducing Valve, 6 in Nominal, Grooved, 220 gpm, 300 psi, 33 to 140 deg F
BrandZurn®
MFG #6-ZW209FPCG
Keller #1345838
My Part ##
Last Ordered#
$19,099.00 / ea
