PHD 950-0000PL UP TO CNCRT INSR&NUT
PHD 950-0000PL UP TO CNCRT INSR&NUT
PHD Concrete Insert, Series: 950 Series, 3-1/8 in Hole Spacing, Carbon Steel, Plain, 2 in Width, 1-5/8 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$20.04 / ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandPHD
FinishPlain
Height1-5/8
Hole Spacing3-1/8
MaterialCarbon Steel
Series950 Series
Width2
Additional Information
ANSI/MSS SP-58 Type 18/SP-69|Federal Specification A-A-1192A Type 18
Documents
Marketing Information

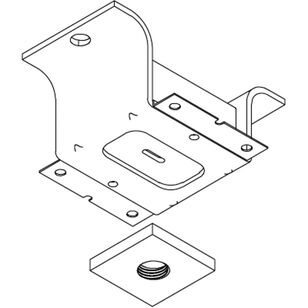

Designed to be embedded in concrete to provide a means of suspending pipe from ceilings. The insert is held in place by nailing it to the forms, until the concrete is poured. The insert comes with a snap-out plug to keep the inner housing clean during pouring of the concrete. After the concrete has set, the plug is removed, exposing the inner housing. The Fig. 950N and 951N concrete insert nuts can be installed and the rod fastened to the nut. The rod should touch the inside top of the insert but should not be forced to avoid damaging the insert.
PHD 950-0000PL UP TO CNCRT INSR&NUT
BrandPHD
MFG #950 0000PL
Keller #1347140
My Part ##
Last Ordered#
$20.04 / ea
