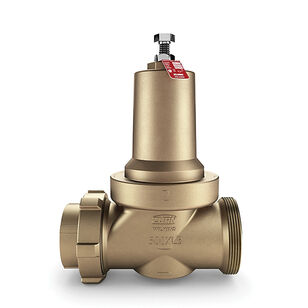

Zurn® 1-500XL3HR Pressure Reducing Valve, 1 in Nominal, Single Union FNPT x FNPT, 400 psi, 140 deg F, Bronze Body
Zurn® 1-500XL3HR Pressure Reducing Valve, 1 in Nominal, Single Union FNPT x FNPT, 400 psi, 140 deg F, Bronze Body
Zurn® Pressure Reducing Valve, 500XL3 Series, 1 in Nominal, Single Union FNPT x FNPT Connection, 400 psi, Pressure Class: 150 lb, Water Media, 4-5/8 in Inlet to Outlet Length, 5-3/8 in Top to Inlet Center, Material Standard: ASTM B584, ASTM B806, Bronze Body, 300 Stainless Steel Stem, 300 Stainless Steel Spring Trim, Lead-Free, 140 deg F, 60 to 125 psi Adjustable Outlet Pressure Rating, High-Capacity
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,348.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZurn®
Additional Information60 to 125 psi Adjustable Outlet Pressure Rating, High-Capacity
Body MaterialBronze
Connection TypeSingle Union FNPT x FNPT
IndustryPlumbing
Inlet to Outlet Length4-5/8
Lead-FreeYes
Material StandardASTM B584, ASTM B806
MediaWater
Nominal Size1
Pressure Class150
Pressure Rating400
Series500XL3 Series
Stem Material300 Stainless Steel
Temperature Rating140
Top to Inlet Center5-3/8
Trim Material300 Stainless Steel Spring
Shipping Dimensions (L x W x H)6.44" x 3.31" x 6.81"
Additional Information
ANSI B1.20.1|ASSE 1003|cUPC Certified|CSA B356|NSF/ANSI/CAN 61/372
Features & Benefits
- Industry leading flow performance, durability, and premium materials of all direct-acting pressure reducing valves on the market Delivers best-in-class flow performance of all direct-acting pressure reducing valves allowing for value engineered design optimization Compact and shortest pressure reducing valve on the market allowing for installation versatility Highly durable, all-bronze body resists corrosion and provides easy access to cartridge internals Get smart pressure alerts with optional ZCSM-RP Lead-free ASSE® Listed cUPC® Listed CSA® Certified Meets the requirements of NSF/ANSI/CAN 61 & 372
Documents
Marketing Information
The 500XL3 Pressure Reducing Valve works effectively for industrial water lines and commercial systems, with high-flow rate capacity and low falloff. The patented integral venturi enables the valve to have best in-class flow performance. The all-bronze body, stainless-steel stem and cartridge internals provide superior corrosion resistance and increases product life offering the ultimate value to the owner.
Zurn® 1-500XL3HR Pressure Reducing Valve, 1 in Nominal, Single Union FNPT x FNPT, 400 psi, 140 deg F, Bronze Body
BrandZurn®
MFG #1-500XL3HR
