ABS Approved|ASME B31, B31.1, B31.3, B31.9|ASTM F3226|CRN 23019.5 A/B/C|IAPMO/UMC Z1117|ICC LC1002|ICC-ES PMG-1124|Lloyd's Registered Certified

• Approved for more applications than any other carbon steel pipe press fitting system Suitable for use with ASTM Schedule 5 to Schedule 40 carbon steel pipe Corrosion-resistent zinc-nickel coating Nearly 150 engineered fitting configurations from 2-1/2 in to 4 in Approved for underground applications, in accordance with code and local AHJ The same hanger and support requirements as threaded systems Viega Smart Connect Technology helps easilty identify unpressed connections and provides installers added confidence in the integrity of connections UL and FM listed for fire protection applications

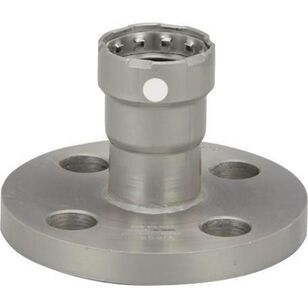

Viega's MegaPress FKM flange is designed for use with the MegaPress black iron pipe joining system. The flange uses Viega's press end technology, eliminating the need for threading or welding and saving valuable time. Viega MegaPress fittings are designed for use in piping systems utilizing ASTM A53, A106, A135, and A795 Schedule 5 to Schedule 40 black iron pipe. The MegaPress flanges are available in sizes 1/2 to 4 and comply with ASME B16.5.
