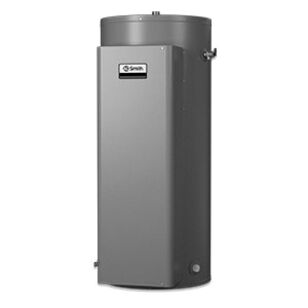

AO Smith® DRE Series DRE-80 DRE-80-24 Electric Water Heater, 80 gal, 81888 Btu/hr, 24 kW, 3 ph, 400/415 V
AO Smith® DRE Series DRE-80 DRE-80-24 Electric Water Heater, 80 gal, 81888 Btu/hr, 24 kW, 3 ph, 400/415 V
AO Smith® Electric Water Heater, DRE Series, Model: DRE-80, 80 gal Capacity, 81888 Btu/hr, 24 kW, 93.7 % Efficiency, 6 Elements, 4000 W Element Wattage, 33.3 A, 400/415 V, 3 ph Phase, NPT Connection, 1-1/4 in Connection, 150 psi, Surface Mounting, Finish: Baked Enamel, 60-1/4 in H x 25-1/2 in W x 31 in D, Incoloy® Element
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandAO Smith®
Amperage Rating33.3
BTU Rating81888
Capacity80
Connection Size1-1/4"
Connection TypeNPT
Dimensions60-1/4 " H x 25-1/2 " W x 31 " D
Efficiency93.7
Element MaterialIncoloy
Element Wattage4000
FinishBaked Enamel
IndustryPlumbing
ModelDRE-80
Mounting TypeSurface
Number of Elements6
Phase3
Power Rating24
Pressure Rating150
SeriesDRE Series
Voltage Rating400/415
Additional Information
AHRAE/IES 90.1|AHRI Certified|ASME HLW Specified|CSA Certified|IEC 60379-2007|UL Listed
Features & Benefits
- Meets the standby loss requirements of the US department of energy and current edition of AHRAE/IES 90.1 Heavy-duty medium watt density elements (three/immersion heater) have incoloy sheathing, provide excellent protection against oxidation and scaling Glass lined tank, two-sizes - 72 and 105 gal capacity Tank interior is coated with glass specially developed by AO Smith® for water heater use Protects all elements, thermostats and internal wiring circuits against excess current flow Meets national electrical code requirements that non-ASME tanks must have internal fusing when current draw exceeds 48 A 208, 240 and 480 V 1 ph and 3 ph delta Convertible from three-phase to single-phase (in field) and vice versa Terminal block is factory installed Just bring the electrical service to the heater and connect to block One-temperature control (adjustable through a range of 120 to 181 deg F) and manual reset high temperature cut-off per element Thermostat step control may be achieved by varying settings on individual temperature controls Located behind hinged control compartment door for quick, easy access Surface-mounted thermostats Simplified circuitry, color-coded for ease of service Two-anode rods for maximum corrosion protection Cabinet has bonderized undercoat with baked enamel finish Bottom inlet and top outlet openings Brass drain valve Single-panel control box
AO Smith® DRE Series DRE-80 DRE-80-24 Electric Water Heater, 80 gal, 81888 Btu/hr, 24 kW, 3 ph, 400/415 V
BrandAO Smith®
MFG #DRE-80-24
Keller #1351142
