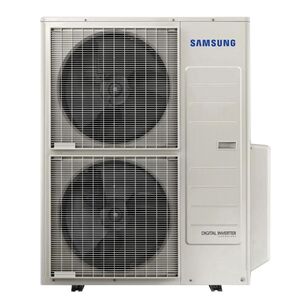

Samsung Max Heat® FJM Series AJ030CXS4CH/AA Heat Pump Condensing Unit, 208/230 V, 8.9/10 A, 28400 Btu/hr Cooling, Steel
Samsung Max Heat® FJM Series AJ030CXS4CH/AA Heat Pump Condensing Unit, 208/230 V, 8.9/10 A, 28400 Btu/hr Cooling, Steel
Samsung Max Heat® Heat Pump Condensing Unit, FJM Series, 208/230 V, 8.9/10 A, 60 Hz, 1 ph, 28600 Btu/hr Heating, 28400 Btu/hr Cooling, 3320 cfm Heating CFM Rating, 13.5 EER Rating, 22.5 SEER, 10.4 HSPF, Inverter Twin BLDC Rotary Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 3/8 in, 1/2 in Suction Line, 55 dBA Heating Sound Level, 52 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, -13 to 75 deg F Heating Operating Temperature, 14 to 114.8 deg F Cooling Operating Temperature, 13 in Overall Length, 37 in Overall Width, 47-5/8 in Overall Height, Additional Information: 4-Port
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,810.40 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information4-Port
Amperage Rating8.9/10
Compressor TypeInverter Twin BLDC Rotary
Cooling BTU Rating28400
Cooling Operating Temperature14 to 114.8
Cooling Sound Level52
EER Rating13.5
FinishGalvanized/Powder-Coated
Frequency Rating60
Heating BTU Rating28600
Heating CFM Rating3320
Heating Operating Temperature-13 to 75
Heating Sound Level55
HSPF Rating10.4
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Overall Height47-5/8
Overall Length13
Overall Width37
Phase1
Refrigerant TypeR-410A
SEER Rating22.5
SeriesFJM Series
Suction Line Size3/8 ", 1/2 "
Voltage Rating208/230
Additional Information
AHRI Certified|cETLus Listed|ENERGY STAR® Certified|UL 60335-2-40
Features & Benefits
- The Samsung Max Heat® system shall provide high heating capacity at -13 deg F (-25 deg C) outside temperature The outdoor unit shall supply power individually to the indoor units via 14 AWG X 3 power wire The outdoor unit shall have a base pan heater as standard to ensure optimal defrost cycle water drainage Auto-restart after power loss Available maximum current setting option to reduce operating current System energy consumption can be viewed using Samsung SmartThings mobile app (not revenue grade, for reference only) Soft-start to reduce current demand during compressor start Auto or manual addressing of indoor units The outdoor unit shall be galvanized steel with a baked on powder coated finish for durability The heat exchanger shall be mechanically bonded fin to copper tube Control signal shall be a DDC type signal Interconnect control wire between outdoor and indoor units shall be 16AWG X 2 Controls shall integrate with a BMS system The system shall integrate with the Samsung Controls solution The refrigerant shall be R410A The compressor shall be hermetically sealed, inverter controlled, Twin BLDC Rotary Refrigerant flow shall be controlled by 4 separate electronic expansion valves at outdoor unit
Samsung Max Heat® FJM Series AJ030CXS4CH/AA Heat Pump Condensing Unit, 208/230 V, 8.9/10 A, 28400 Btu/hr Cooling, Steel
BrandSamsung
MFG #AJ030CXS4CH/AA
Keller #1352996
My Part ##
Last Ordered#
$5,810.40 / ea
