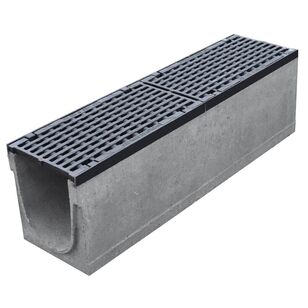

Sioux Chief HydroTec™ Maxi 200 865-M8N00DA Trench Drain With Class D ADA Compliant Ductile Grate, 39.4 in L, 10.39 in W
Sioux Chief HydroTec™ Maxi 200 865-M8N00DA Trench Drain With Class D ADA Compliant Ductile Grate, 39.4 in L, 10.39 in W
Sioux Chief Trench Drain, Series: 865 Series, HydroTec™ Maxi 200 Collection, 39.4 in Length, 10.39 in Width, 12.2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$898.09 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
CollectionHydroTec Maxi 200
Depth12.2
IndustryPlumbing
Length39.4
Series865 Series
Width10.39
Additional Information
ADA Compliant|ASME A112.6.3
Features & Benefits
- 8" wide, fiber-reinforced concrete channels with ductile iron edge rails for ultimate strength and durability. Patented grate-locking system - no fasteners needed. Optional F1-Locking feature available Ductile iron grates with load ratings up to Class F. Use in industrial areas, airports, heavy-traffic loading areas, etc.
Documents
Marketing Information
Sioux Chief 865 Series HydroTec™ Maxi 200 trench drain shall be used where necessary for surface drainage. Trench drain shall incorporate a fiber-reinforced concrete channel, ductile iron edge rails, and ductile iron, ADA-compliant, grating - all components shall be assembled. Channel shall have a U-shaped flow area and a smooth outer wall to maximize adhesion with concrete encasement and reduce trapped air pockets. Edge rails shall be integrally formed into the channel wall. Concrete thickness and reinforcement shall be per structural engineer's specification for the application. Designed in accordance with ASME A112.6.3
Sioux Chief HydroTec™ Maxi 200 865-M8N00DA Trench Drain With Class D ADA Compliant Ductile Grate, 39.4 in L, 10.39 in W
BrandSioux Chief
MFG #865-M8N00DA
Keller #1353044
My Part ##
Last Ordered#
$898.09 / ea
