HW DS06-101-DUP-LF/U 3/4 DS06 DIALSET DUP PRESS LF PRV
HW DS06-101-DUP-LF/U 3/4 DS06 DIALSET DUP PRESS LF PRV

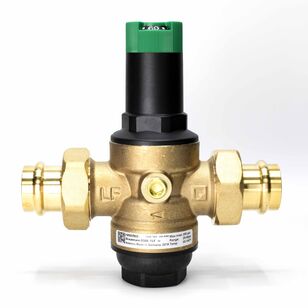

Resideo, DS06-101-DUP-LF/U, Pressure Regulating Valve, DialSet, Series: DS06, 3/4 in Nominal, FNPT End Style, 250 psi Pressure, 33 to 140 deg F, Media: Water, Brass Body, Black/Green, 5.83 in H x 6.42 in L Dimensions, Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$308.97 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Body MaterialBrass
ColorBlack/Green
Dimensions5.83 " H x 6.42 " L
Domestic/ImportImport
End StyleFNPT
IndustryHVAC
MediaWater
Nominal Size3/4"
Pressure Rating250
SeriesDS06
Temperature Rating33 to 140
TypeDialSet
Additional Information
ASSE 1003-2020 Listed|CSA Certified (B356-10)|IAPMO Listed|NSF/ANSI 61 Compliant|NSF/ANSI 372 Compliant|UPC Listed
Features & Benefits
- Dial Calibration ± 4 psi Balanced cartridge design allows for thermal expansion properties Use expansion tanks and safety valves where applicable Built-in adjustment dial, no need for a gauge Completely rebuildable with balance seated, noncorroding cartridge design and built-in DialSet® with 25-90PSI adjustment range Built-in strainer to simplify maintenance
HW DS06-101-DUP-LF/U 3/4 DS06 DIALSET DUP PRESS LF PRV
BrandHoneywell
MFG #DS06-101-DUP-LF/U
Keller #1353741
