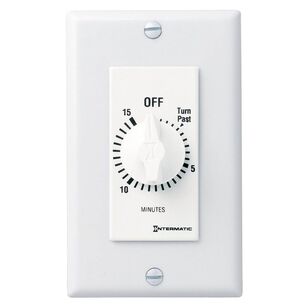

Intermatic® FD Series FD15MWC Countdown Timer, 125 to 277 VAC, 7 A, 50/60 Hz, 15 min Timing, SPST
Intermatic® FD Series FD15MWC Countdown Timer, 125 to 277 VAC, 7 A, 50/60 Hz, 15 min Timing, SPST
Intermatic® Countdown Timer, FD Series, 125 to 277 VAC, 7 A, 50/60 Hz, 2500 to 2770 W, 125 VAC Coil, 1 Poles, Contact Configuration: SPST, 15 min Timing, Switch Rating: 10 A, 10 A, 20 A, 2500 W at 125 VAC, 2500 W at 250 VAC, 2770 W at 277 VAC Resistive Heater, 7 A at 125 VAC 50 Hz, 7 A at 125 VAC 60 Hz, 875 W Tungsten Incandescent, Teeter Terminal, Operating Modes: Countdown, Gloss, White, 40 to 120 deg F, 4-1/8 in H x 1-3/4 in W x 1-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Amperage Rating7
Coil Voltage125
ColorWhite
Contact ConfigurationSPST
Correct Item GroupElectrical Supplies
Dimensions4-1/8 " H x 1-3/4 " W x 1-1/4 " D
FinishGloss
Frequency Rating50/60
IndustryLeisure
Mounting TypeWall
Number of Poles1
Operating ModesCountdown
Power Rating2500 to 2770
SeriesFD Series
Switch Rating10 A, 10 A, 20 A, 2500 W at 125 VAC, 2500 W at 250 VAC, 2770 W at 277 VAC Resistive Heater, 7 A at 125 VAC 50 Hz, 7 A at 125 VAC 60 Hz, 875 W Tungsten Incandescent
Temperature Rating40 to 120
Terminal TypeTeeter
Timing Range15
Voltage Rating125 to 277
Shipping Dimensions (L x W x H)2.5" x 4" x 7"
Additional Information
cCSAus Certified|UL Listed
Features & Benefits
- 15 min timer SPST (Single-Pole Single-Throw) Breaks circuit at end of timing cycle No electricity required to operate Replaces any standard or decorator single- or multi-gang wall switch Automatically limits on time for energy consuming loads Quick and easy installation Time-saving up front terminal connection with teeter-type terminals Incandescent/fluorescent/CFL/LED compatible No neutral connection is required
Documents
Marketing Information
The FD Series decorator countdown timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. Note - Not for use with sunlamps, saunas or loads that could cause personal injury if timed incorrectly. Wall plate not included.
