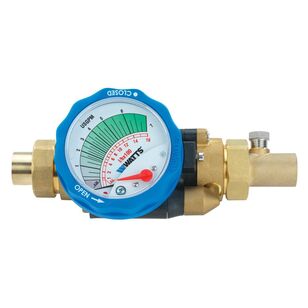

WATTS® LFiDROSET™ CSD Series 0856712 Balancing Valve With Calibrated Flow Measurement
WATTS® LFiDROSET™ CSD Series 0856712 Balancing Valve With Calibrated Flow Measurement
WATTS® LFiDROSET™ Balancing Valve With Calibrated Flow Measurement, CSD Series, 1 in Nominal, Union Connection, 0.25 to 7 gpm Flow Rate, 230 psi, 5.1 Cv Flow Coefficient (Cv), EPDM Seal, Polyphenylene Sulfide, 8.94 in Inlet to Outlet Length, Lead-Free, 3.25 in H x 3.7 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$508.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Connection TypeUnion
Dimensions3.25 " H x 3.7 " W
Flow Coefficient (Cv)5.1
Flow Rate0.25 to 7
Inlet to Outlet Length8.94
MaterialPolyphenylene Sulfide
Nominal Size1
Pressure Rating230
Seal MaterialEPDM
SeriesCSD Series
Shipping Dimensions (L x W x H)9" x 5" x 4.5"
Additional Information
NSF/ANSI/CAN 61, 372
Features & Benefits
- Lead Free construction to comply with Lead Free installation requirements GPM/LPH gauge, factory tested and calibrated to plus/minus 10 percent accuracy Union solder end connections, with one 1/4 inch attachment port Capable of positive shutoff
Documents
Marketing Information
This 1 inch static balancing valve with built in calibrated flow meter is made for potable water systems. Combination union solder end fittings make maintenance quick and easy. Adjust flow rate with one hand by turning bezel which is lockable with Allen screw. Eliminates need for external test equipment and cumbersome pressure calculations. Integrated 1/4 inch NPT threaded port at one end of valve for adding optional temperature pressure gauge or sensors.
WATTS® LFiDROSET™ CSD Series 0856712 Balancing Valve With Calibrated Flow Measurement
BrandWATTS®
MFG #0856712
Keller #1354474
My Part ##
Last Ordered#
$508.00 / ea
