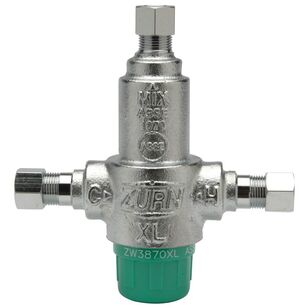

Zurn® Aqua-Gard® 38-ZW3870XLT Thermostatic Mixing Valve, 3/8 in Nominal, Compression, 3.1 gpm, 145 psi, 40 to 195 deg F
Zurn® Aqua-Gard® 38-ZW3870XLT Thermostatic Mixing Valve, 3/8 in Nominal, Compression, 3.1 gpm, 145 psi, 40 to 195 deg F
Zurn® Aqua-Gard® Thermostatic Mixing Valve, 3/8 in Nominal, Compression Connection, 145 psi, 3.1 gpm Flow Rate, Bronze Body, FKM Seal, Finish: Nickel-Plated, 40 to 195 deg F, 4-27/32 in H x 4-3/16 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$496.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZurn®
Body MaterialBronze
Color/FinishNickel-Plated
Connection TypeCompression
Dimensions4-27/32 " H x 4-3/16 " W
FinishNickel-Plated
Flow Rate3.1
Nominal Size3/8
Pressure Rating145
Seal MaterialFKM
Temperature Rating40 to 195
Additional Information
ASSE 1070|CSA B125.70|cUPC Certified|NSF/ANSI/CAN 61-9 Q≤1
Features & Benefits
- Most suitable for use with sensor faucets Inlet checks and strainers included Designed for single fixture use
Documents
Marketing Information
The Aqua-Gard® ZW3870XLT thermostatic mixing valve is designed to be installed with 3/8 in point-of-use applications (residential and light commercial installations) to mix hot and cold-water from the distribution system to a final safer temperature. The ZW3870XLT is also available in a thermal flush option to allow maintenance personnel, using a special tool, to temporarily override the anti-scald function of the valve and flush the downstream system with high-temperature water for disinfection purposes.
Zurn® Aqua-Gard® 38-ZW3870XLT Thermostatic Mixing Valve, 3/8 in Nominal, Compression, 3.1 gpm, 145 psi, 40 to 195 deg F
BrandZurn®
MFG #38-ZW3870XLT
Keller #1355054
