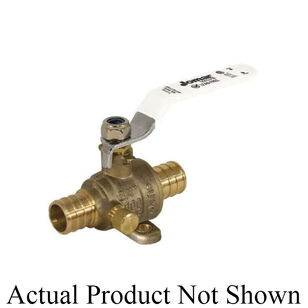

Jomar Valve® 103-544PG Ball Valve With Drain, 3/4 in, PEX Crimp, Brass, 600 psi
Jomar Valve® 103-544PG Ball Valve With Drain, 3/4 in, PEX Crimp, Brass, 600 psi
Jomar Valve® Ball Valve With Drain, 3/4 in Nominal, PEX Crimp Connection, 600 psi, 2.82 in Inlet to Outlet Length, 1.72 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM UNS C46500/C37700, Brass Body, PTFE Seat, 304 Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, Steel Handle, 304 Stainless Steel Ball, Buna-N/PTFE Softgoods, Lead-Free, 180 deg F, 2.82 in L, Additional Information: Model T-413G, 2-Piece
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$34.04 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandJomar Valve®
Additional InformationModel T-413G, 2-Piece
Ball Material304 Stainless Steel
Body MaterialBrass
Connection TypePEX Crimp
Dimensions2.82 " L
Handle MaterialSteel
Inlet to Outlet Length2.82
Material StandardASTM UNS C46500/C37700
Nominal Size3/4
Operator TypeLever Handle
Packing MaterialPTFE
Pressure Rating600
Seat MaterialPTFE
Softgoods MaterialBuna-N/PTFE
Stem Material304 Stainless Steel
Temperature Rating180
Top to Inlet Center1.72
Trim MaterialStainless Steel
Additional Information
ASME A112.4.14|ASTM F1807|CSA Certified|cUPC Certified|IAPMO/ANSI Z1157-2014|NSF 9/61/372|NSF/ANSI 14-2014|RoHS Compliant
Features & Benefits
- Dezincification-resistant brass alloy Gland follower and single O-ring stem design Drop ears for easy installation Blowout-proof stem design 100% leak tested
Documents
Jomar Valve® 103-544PG Ball Valve With Drain, 3/4 in, PEX Crimp, Brass, 600 psi
BrandJomar Valve®
MFG #103-544PG
Keller #1356646
My Part ##
Last Ordered#
$34.04 / ea
